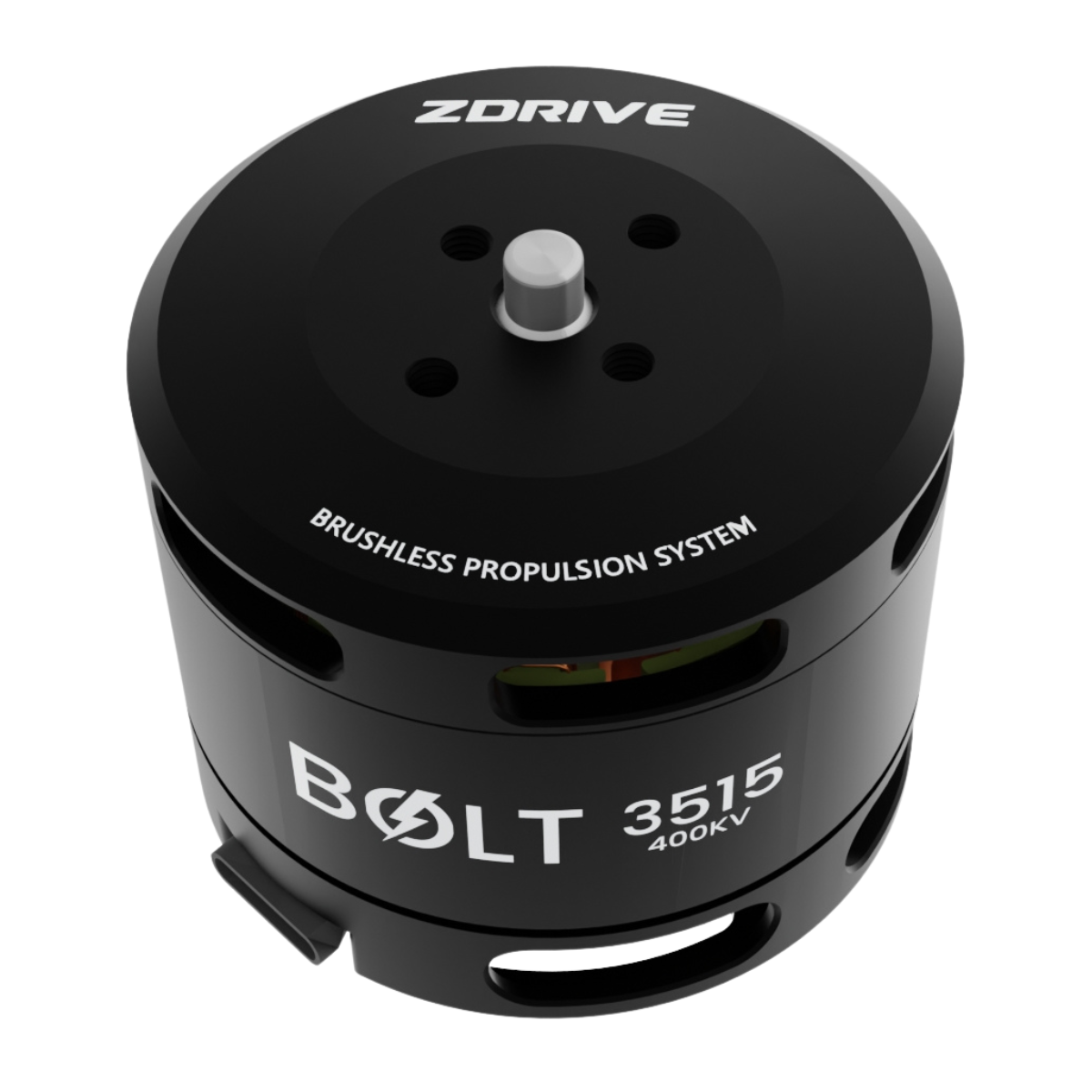

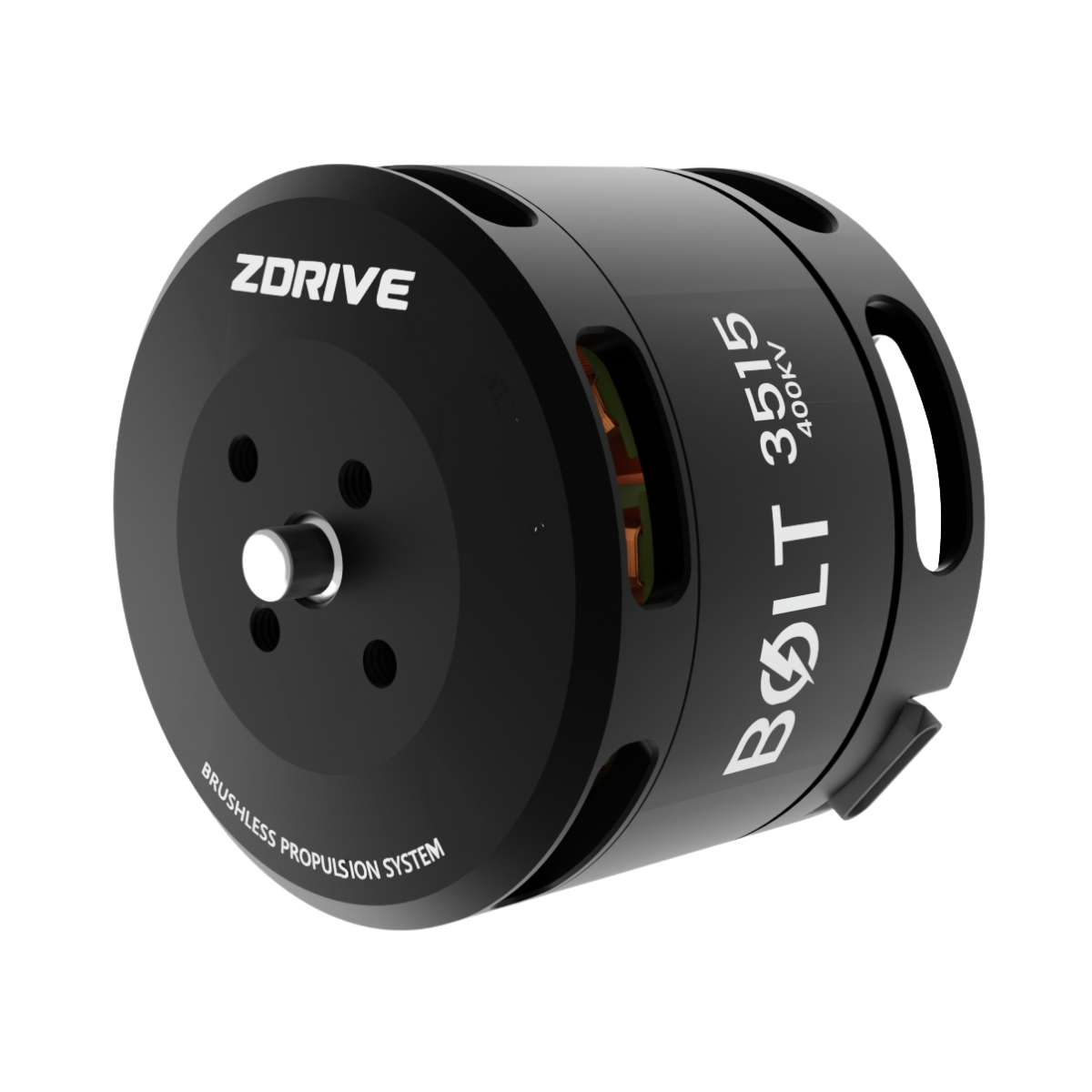

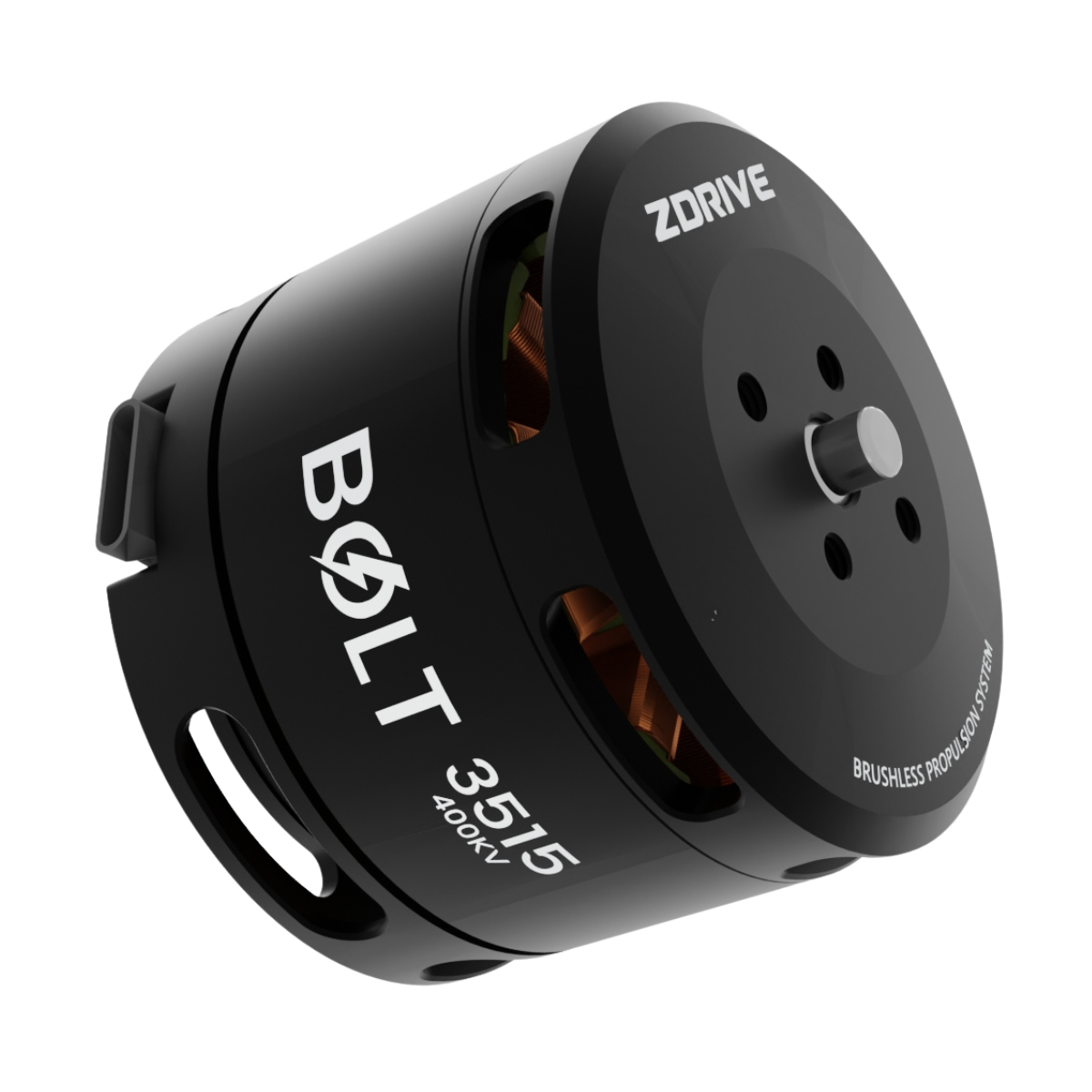

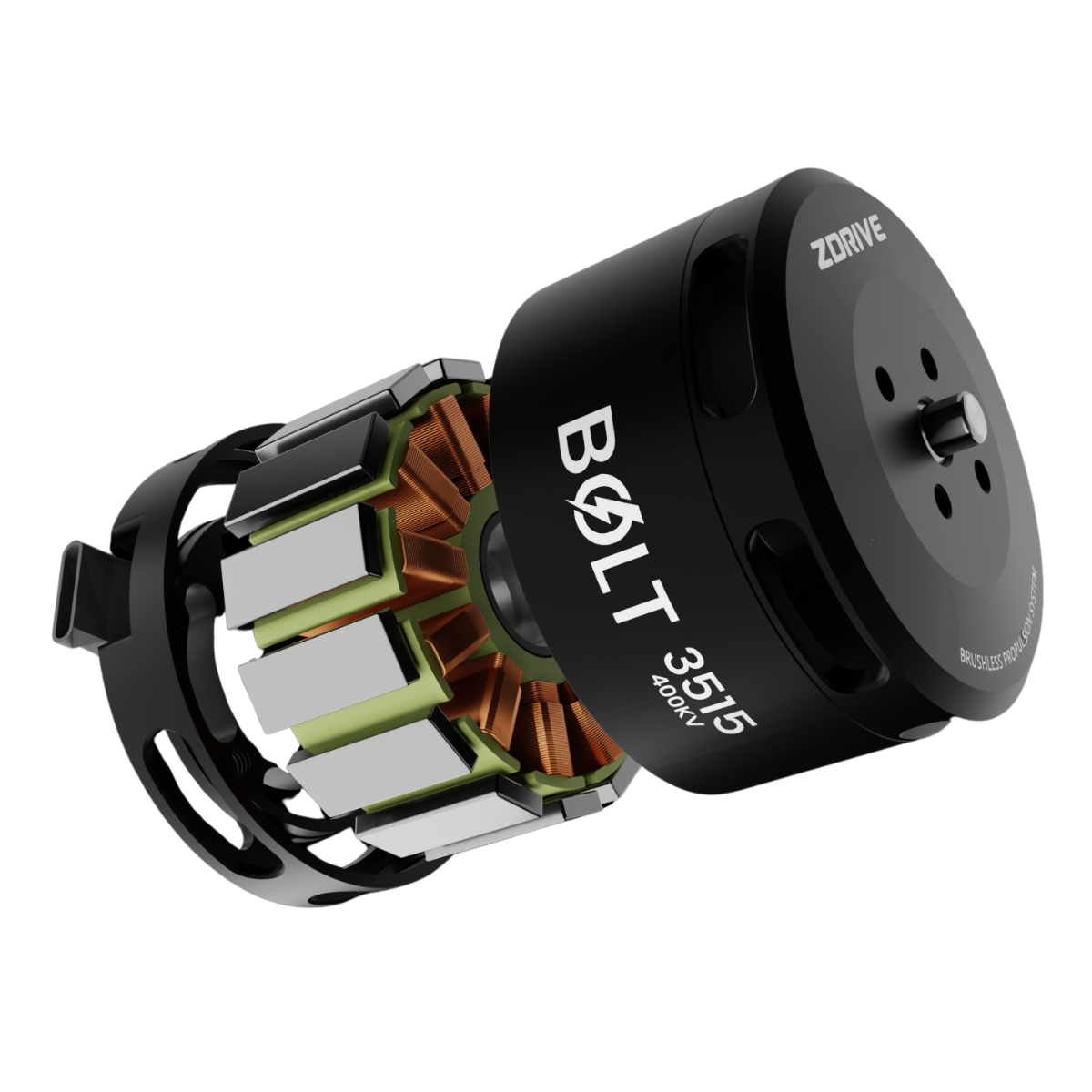

BOLT 3515

₹8,000.00

Features

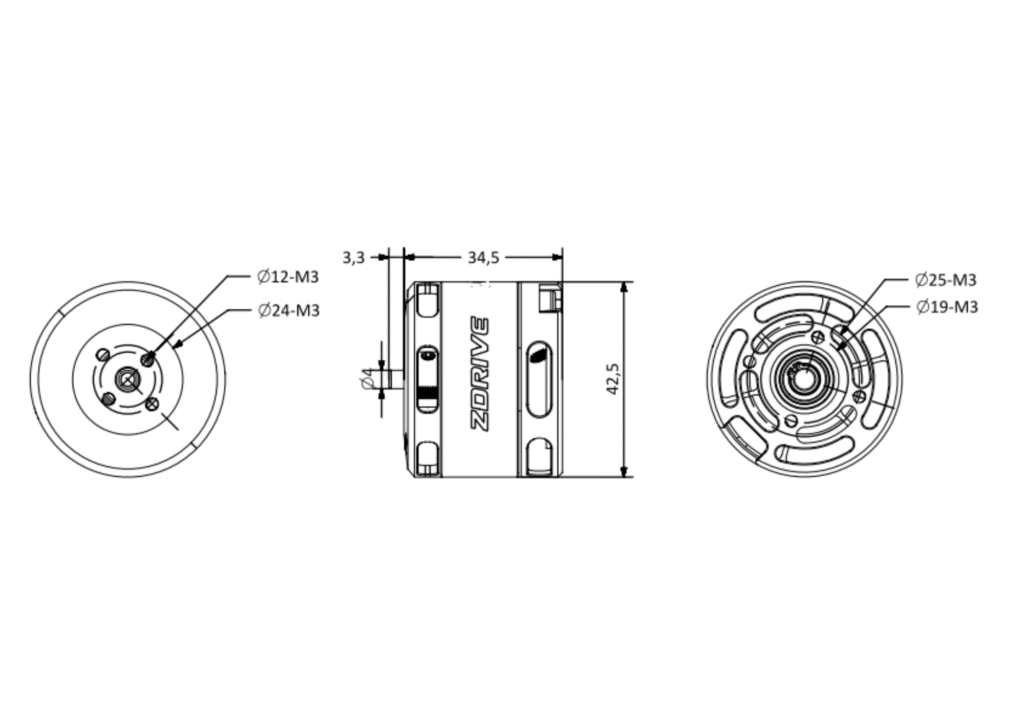

Motor Size :D:42.5 x 37.5 mm

Propeller Mounting Holes :D:12 M3x2, D:15 M3x2

Shaft Diameter :IN: 5 mm

IP rating :35

Varnished wire Degree :150°C

Magnet Degree :150°C

Rotor Balance :≤5 mg

Motor Mounting Holes :D:19 M3x2 D:25 M3x2

Specifications

No Load Current :0.57 A/ 20V

Motor Weight :152 g

Maximum Current :23.27 A

Maximum thrust :3.1 kg

Nominal Voltage :6S lipo battery

Internal Resistance :88mΩ

Maximum Power :547.9W

Maximum Torque :0.59 Nm

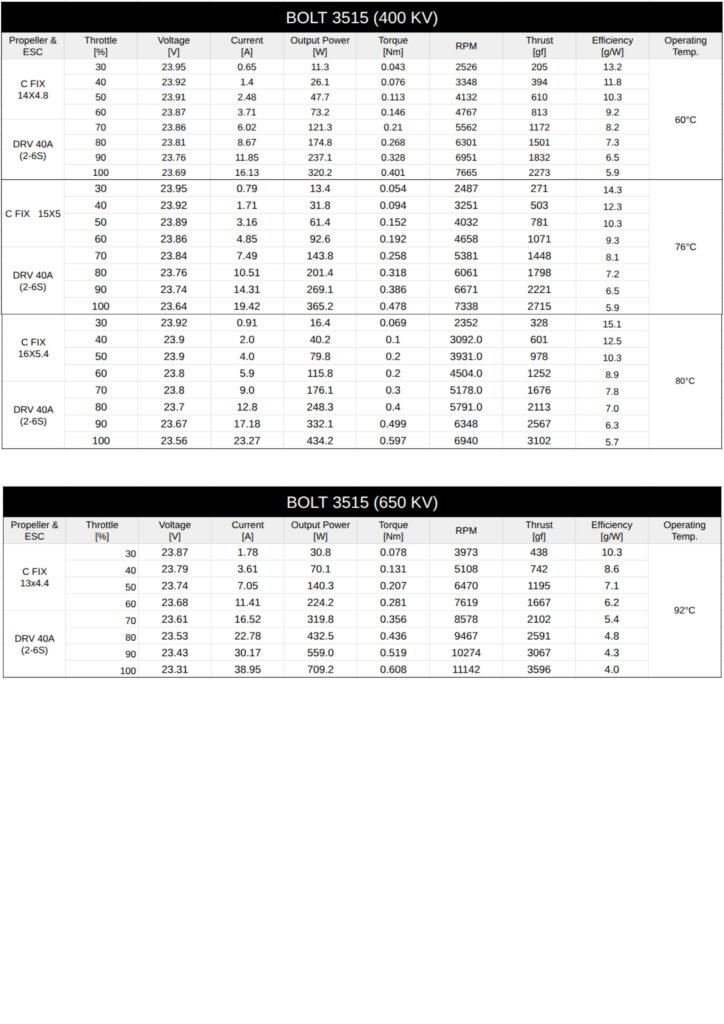

Training Data
