AIR 5008 (240 KV)

₹12,400.00

Features

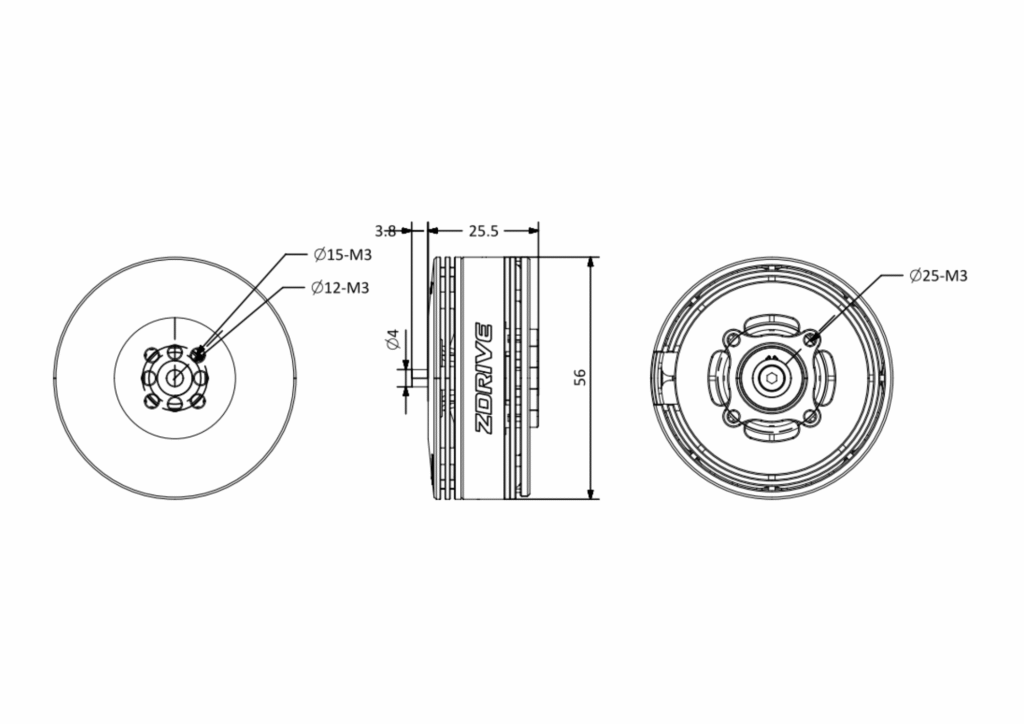

Motor Size :D:56 x 29.3 mm

Propeller Mounting Holes :D:12 M3x4, D:15 M3x4

Shaft Diameter :IN: 6 mm

IP rating :45

Varnished wire Degree :180°C

Magnet Degree :150°C

Rotor Balance :≤5 mg

Motor Mounting Holes :D:25 M3x4

KV :240 KV (other variations of this product are available on shop-main page. )

Specifications

No Load Current :0.67 A/ 20V

Motor Weight :142 g

Maximum Current :24.48 A

Maximum thrust :4.19 kg

Nominal Voltage :6S lipo battery

Internal Resistance :104mΩ

Maximum Power :775.2W

Maximum Torque :0.98 Nm

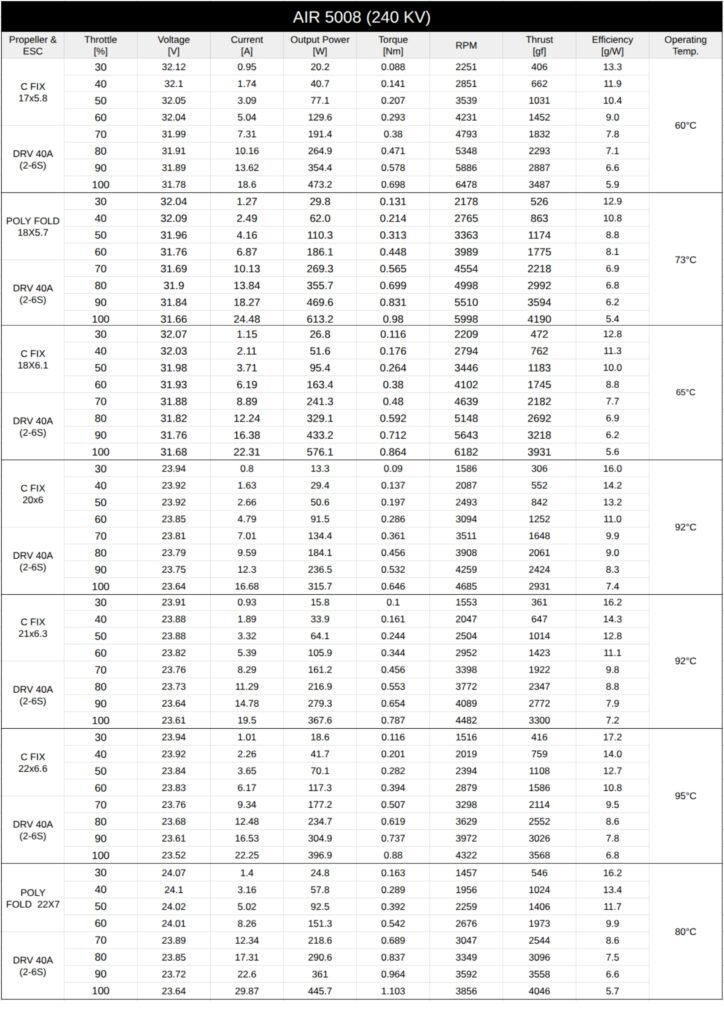

Training Data
