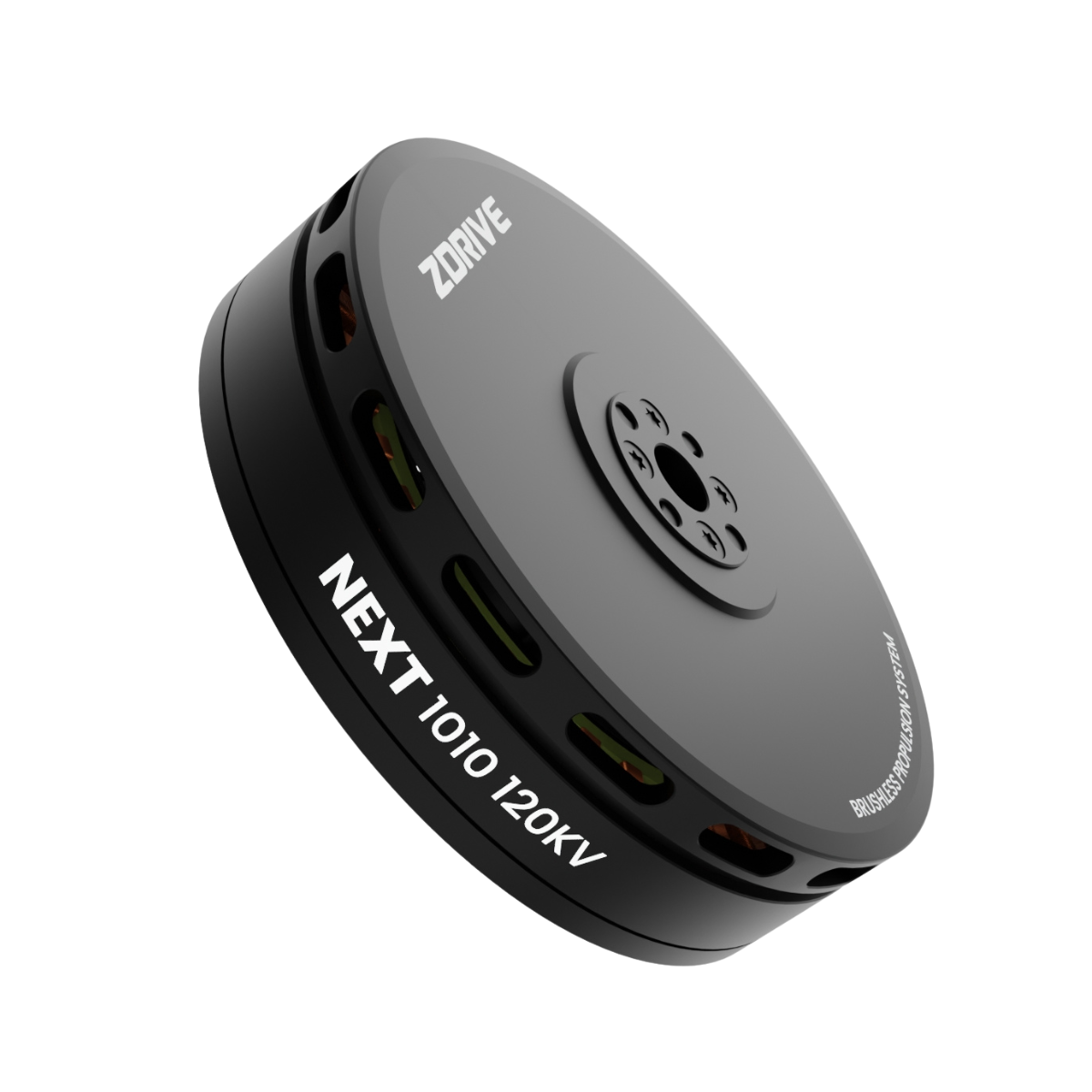

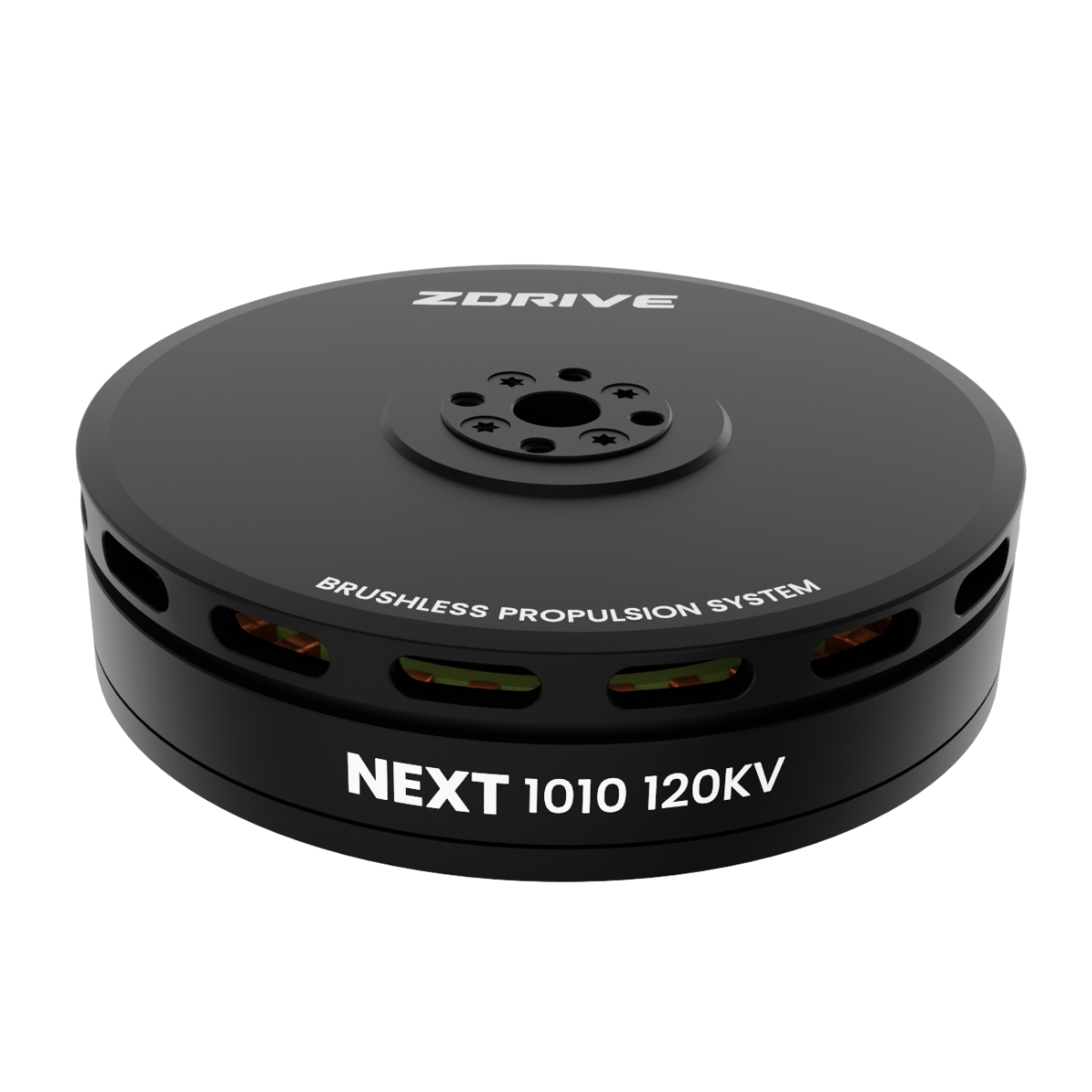

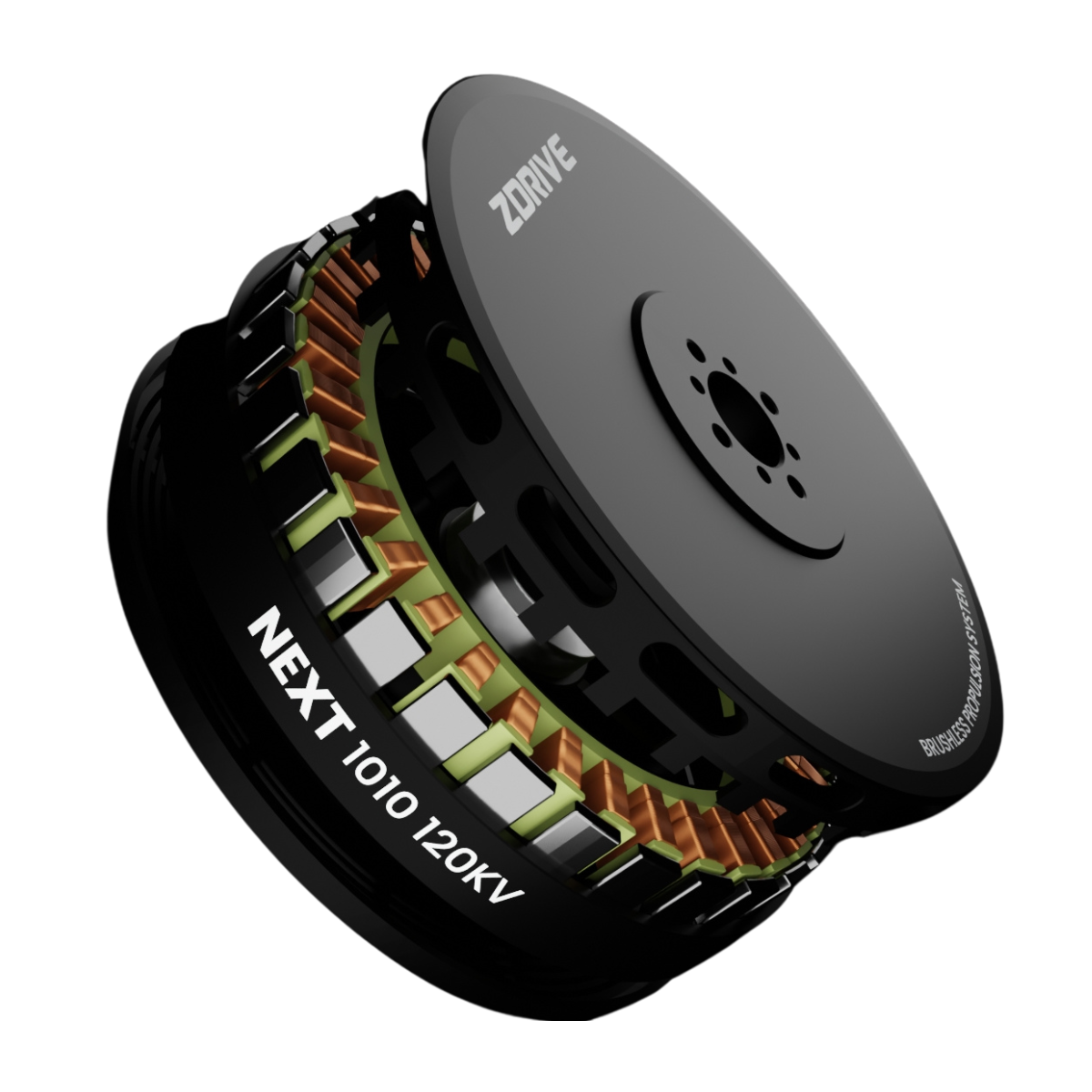

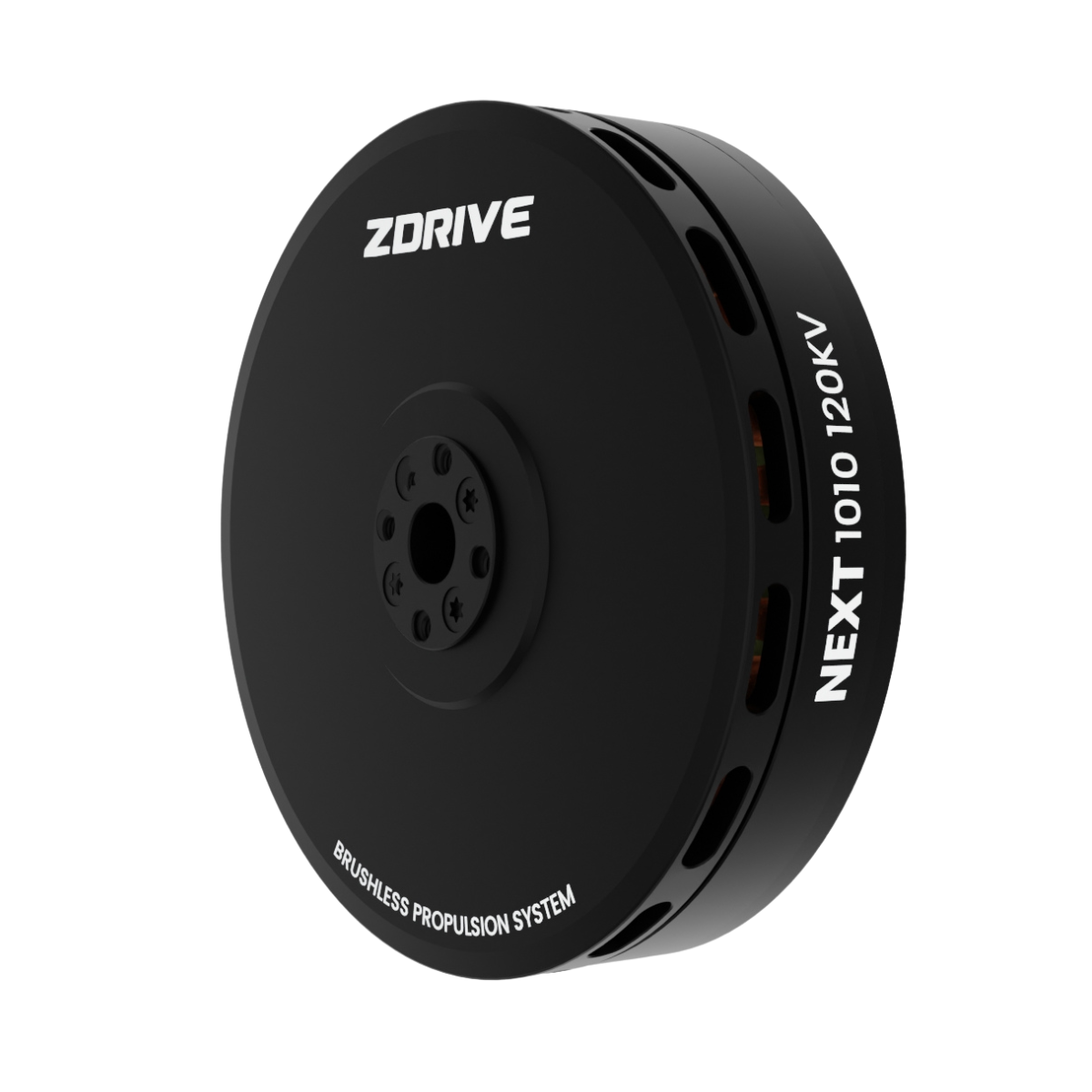

N1010

₹28,500.00

Features

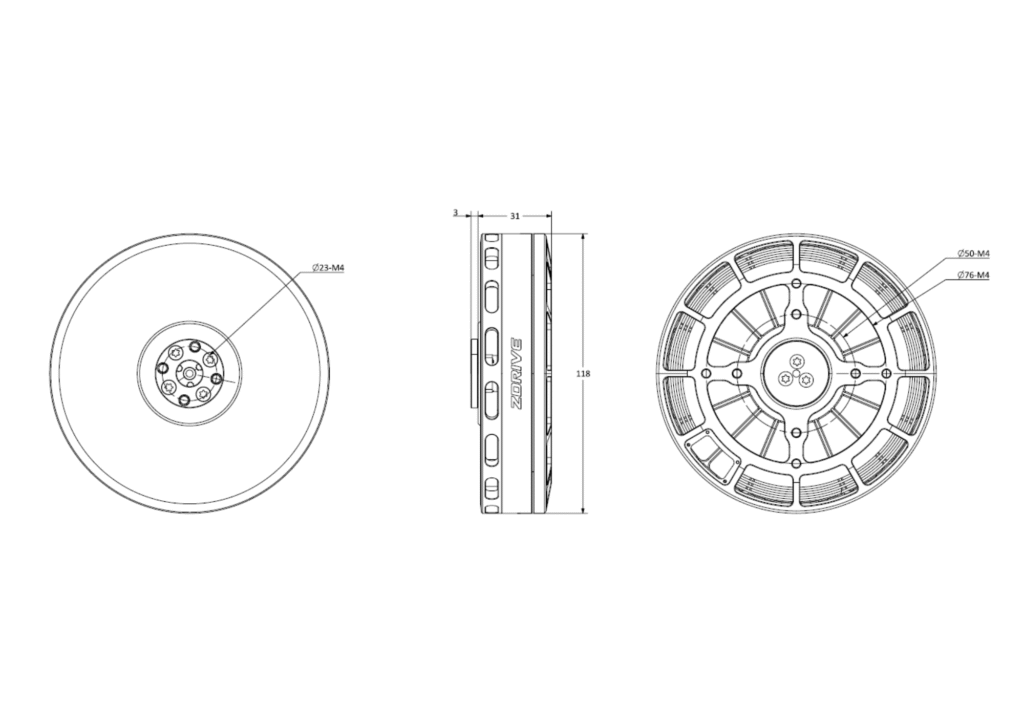

Motor Size :D:118x34 mm

Propeller Mounting Holes :D:23 M3x42

Shaft Diameter :IN: 15 mm

IP rating :35

Varnished wire Degree :220°C

Magnet Degree :180°C

Rotor Balance :≤10 mg

Motor Mounting Holes :D:50 M4x4, D:76 M4x42

Specifications

No Load Current :1.8A/30V

Motor Weight :610 g

Maximum Current :60.03 A

Maximum thrust :14.4 kg

Nominal Voltage :12S lipo battery

Internal Resistance :60 mΩ

Maximum Power :2889.2 W

Maximum Torque :5.83 Nm

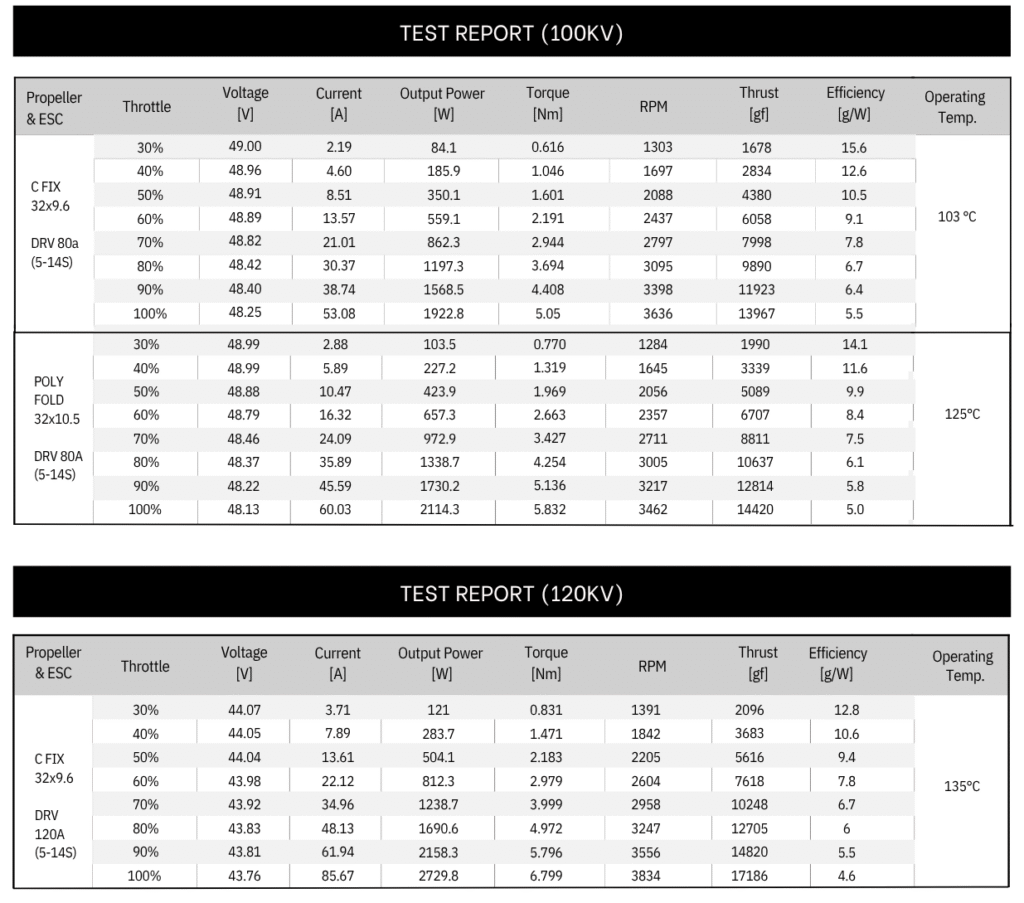

Training Data
