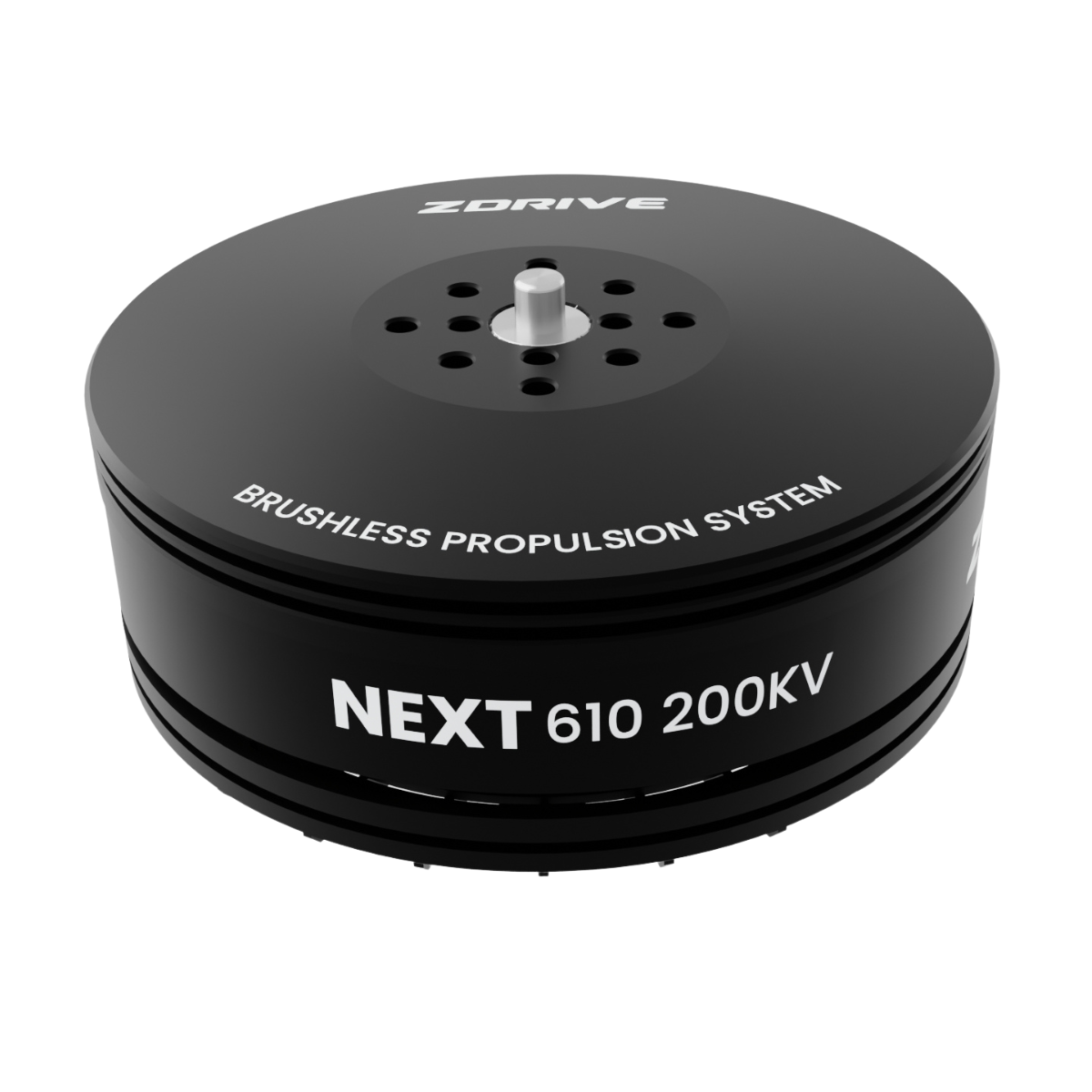

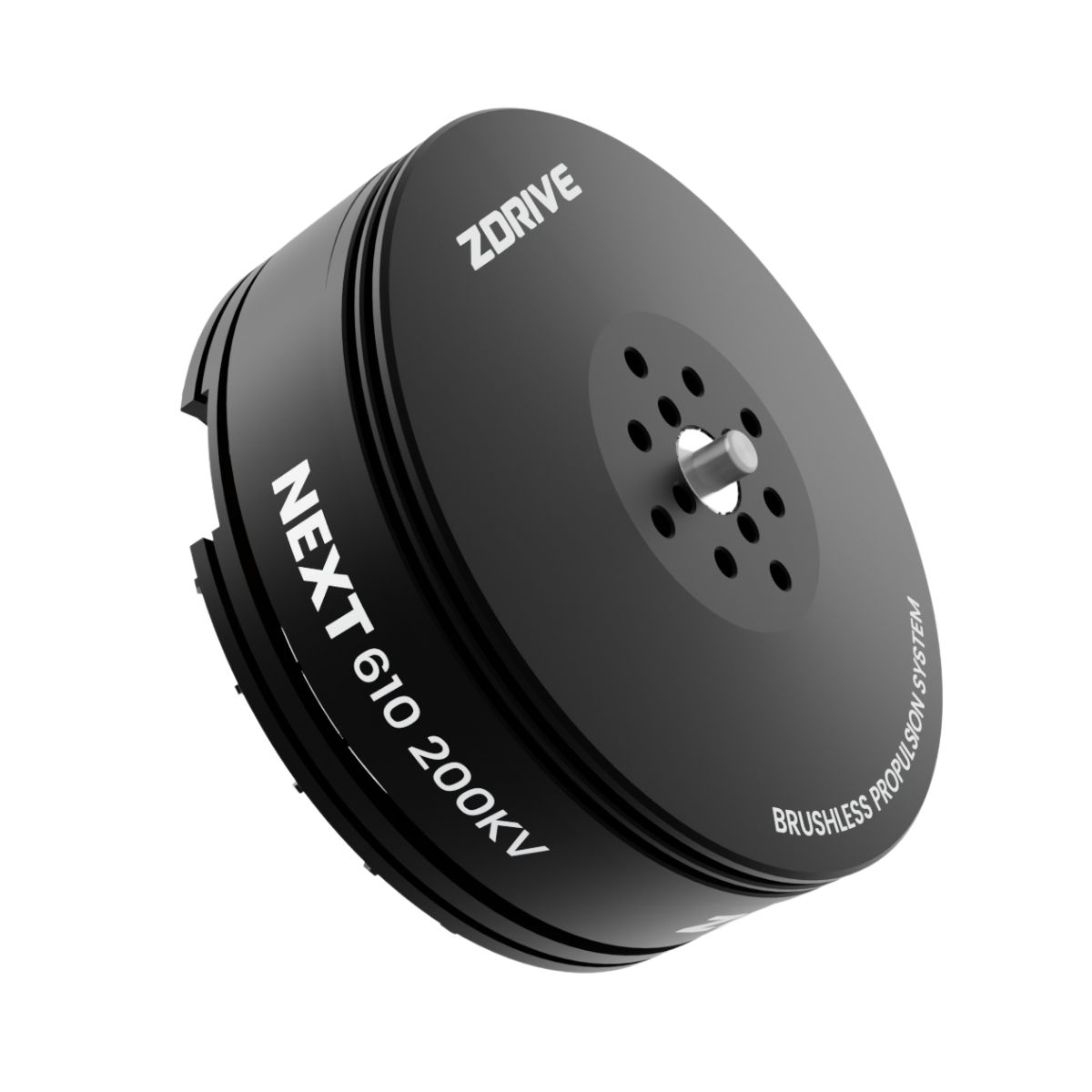

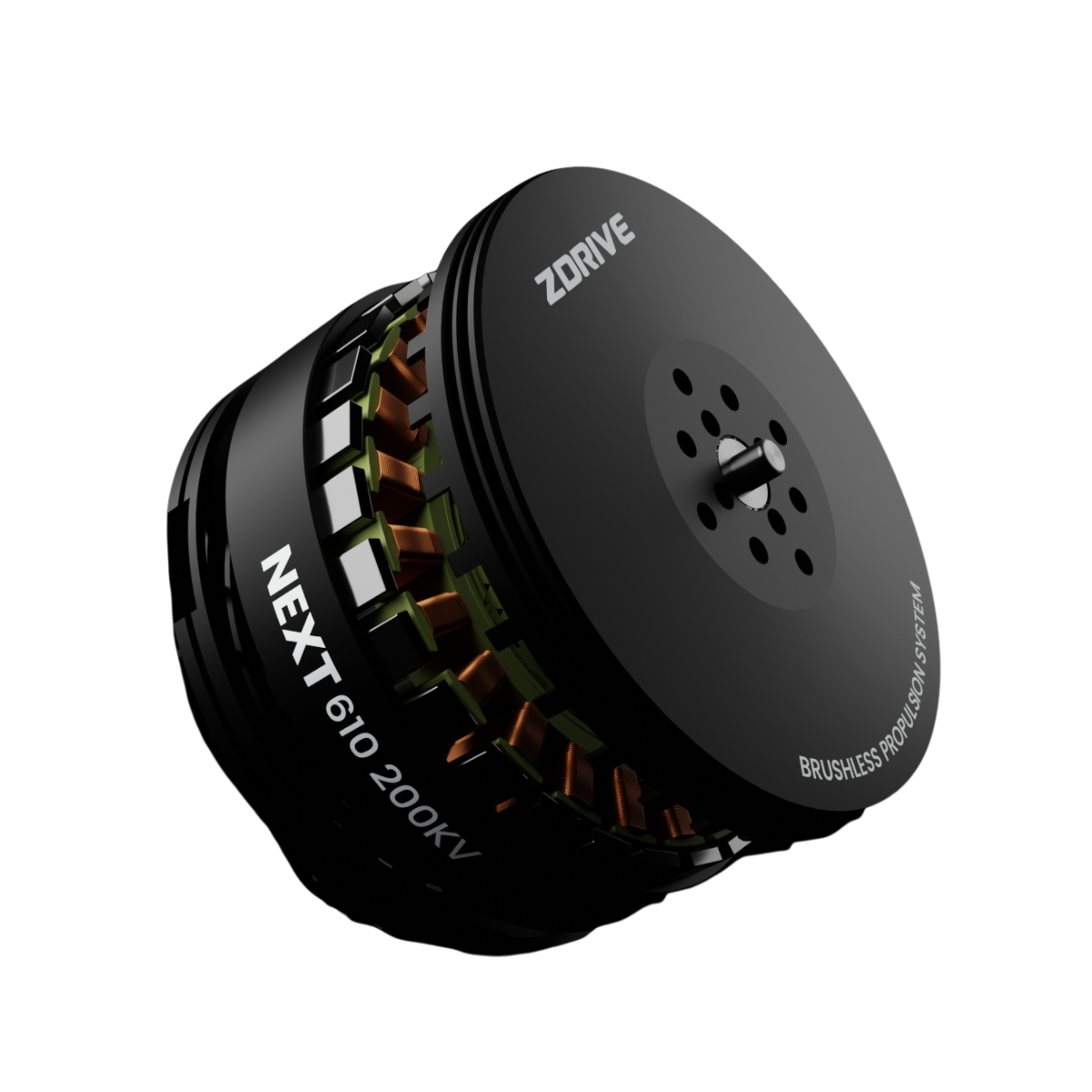

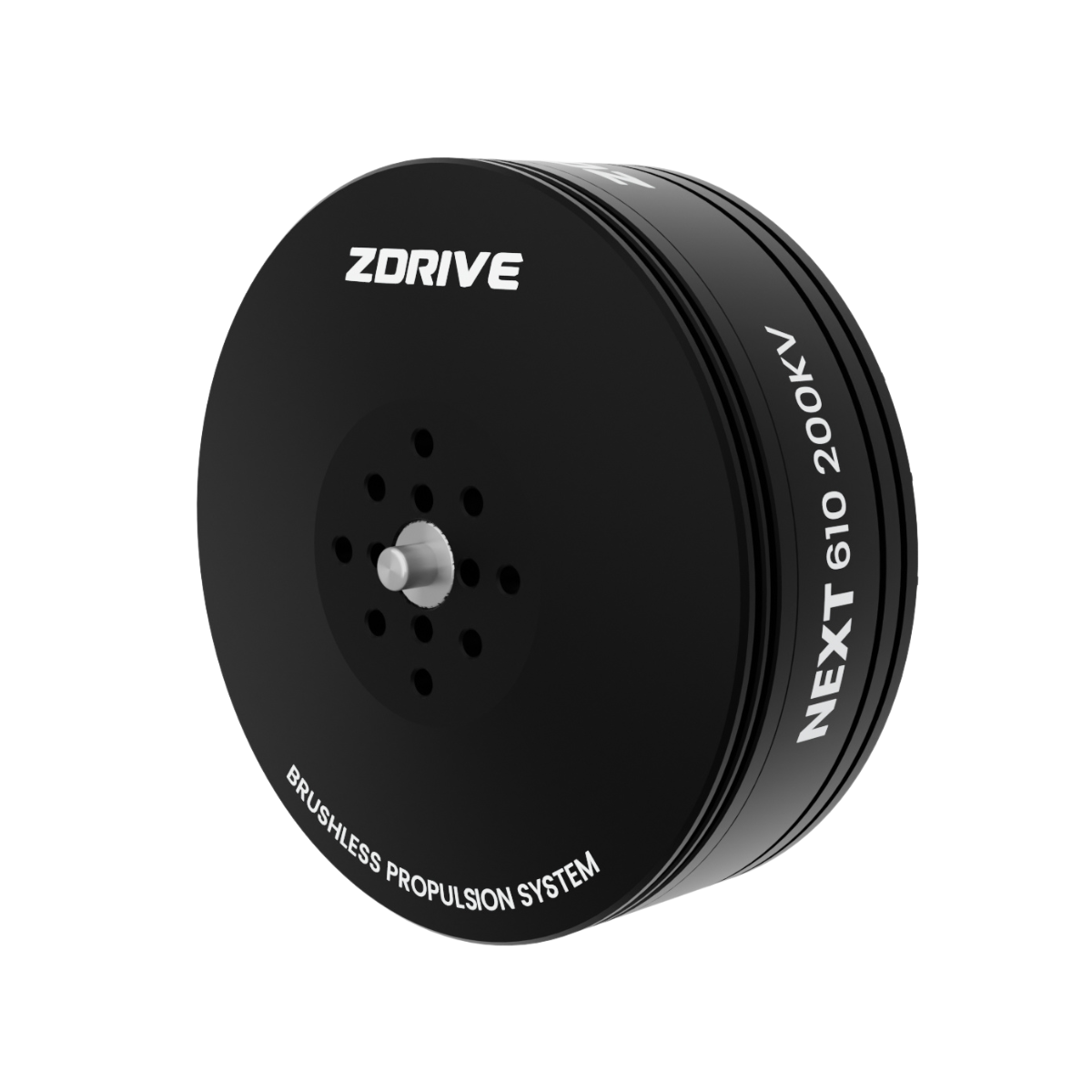

N610

₹15,000.00

Features

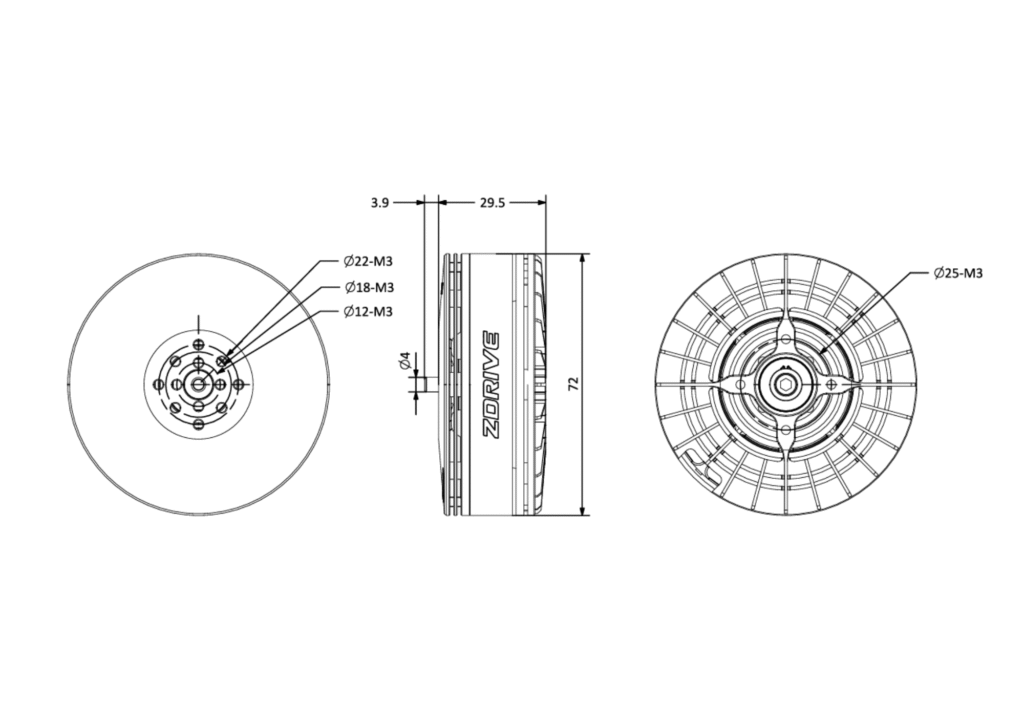

Motor Size :D:72 x 33.4 mm

Propeller Mounting Holes :D:12 M3×4, D:18 M3×4, D:22 M3×4

Shaft Diameter :IN: 6 mm

IP rating :45

Varnished wire Degree :180°C

Magnet Degree :150°C

Rotor Balance :≤5 mg

Motor Mounting Holes :D:25 M3×4

Specifications

No Load Current :1.03A/ 20V

Motor Weight :226 g

Maximum Current :46.92 A

Maximum thrust :9.70 kg

Nominal Voltage :12S lipo battery)

Internal Resistance :64mΩ

Maximum Power :2236.2 W

Maximum Torque :2.34 Nm

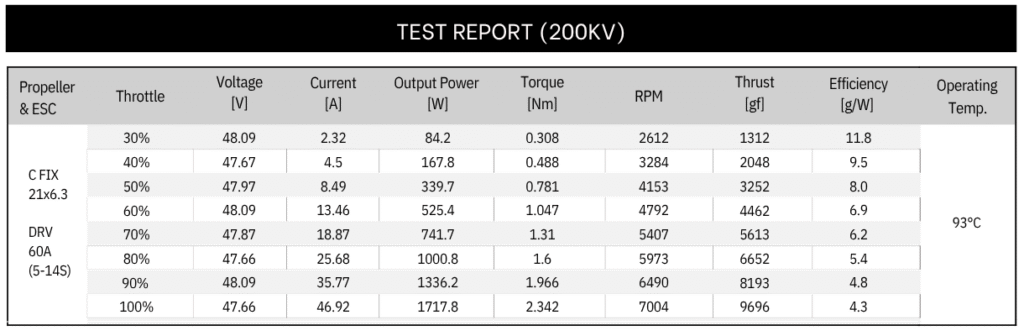

Training Data
