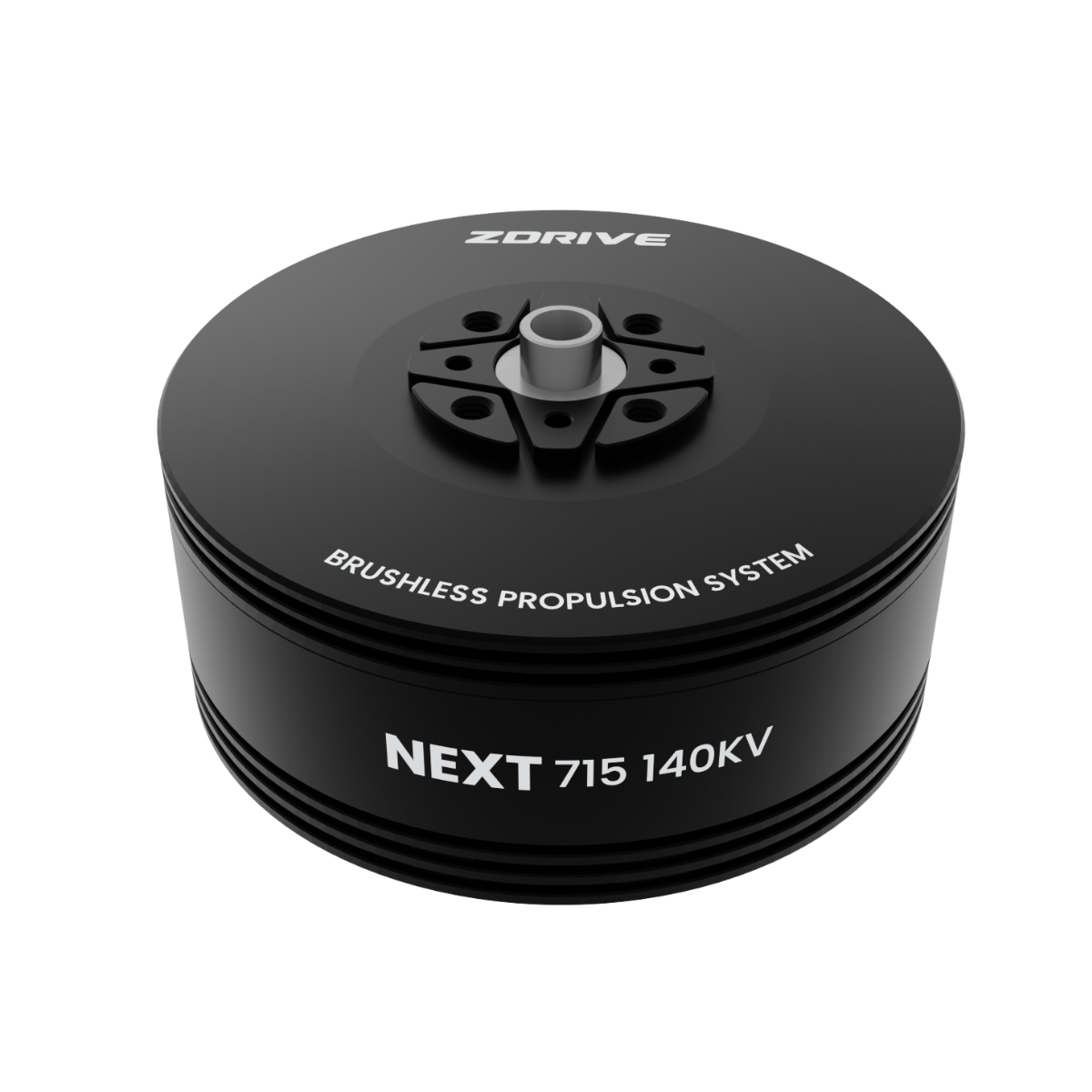

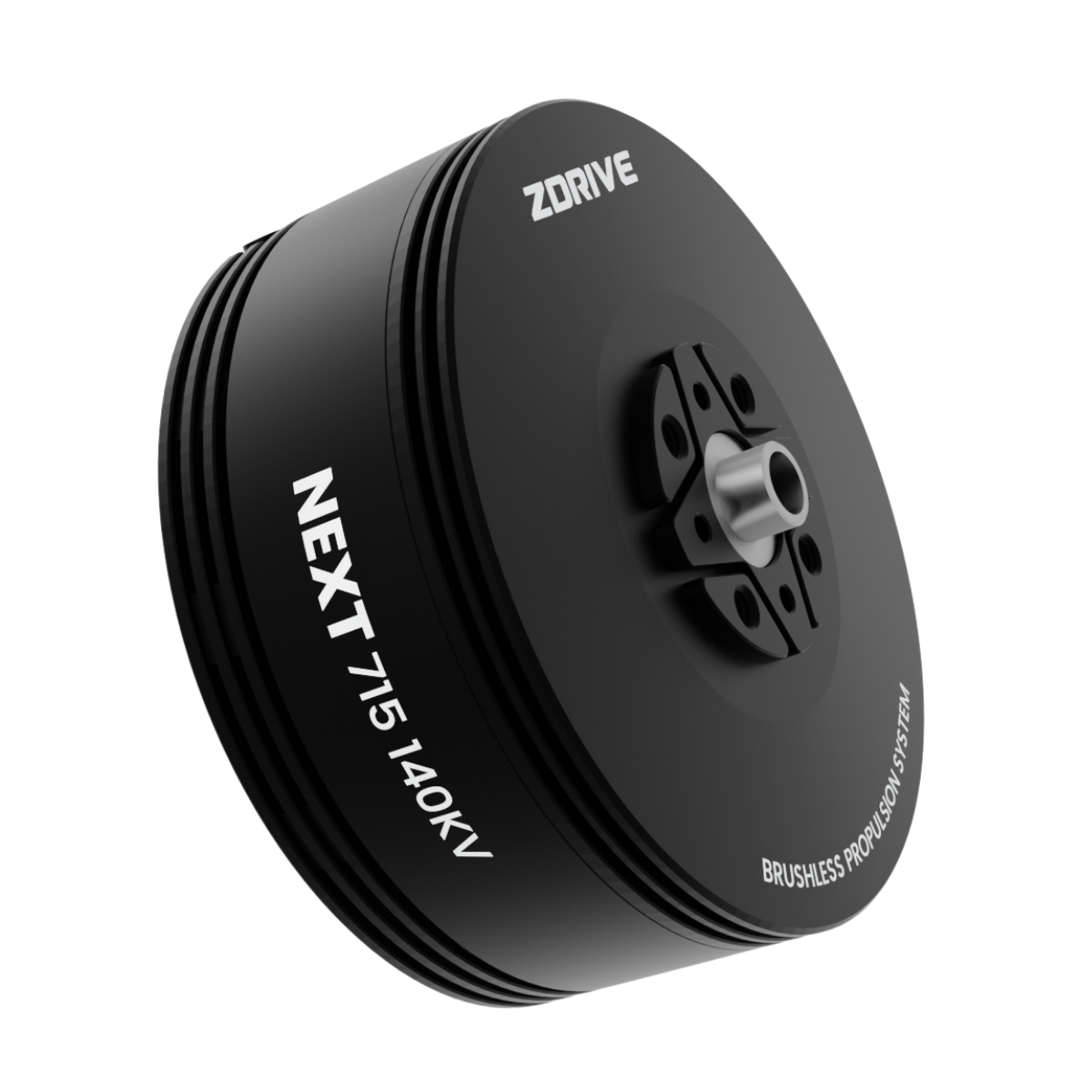

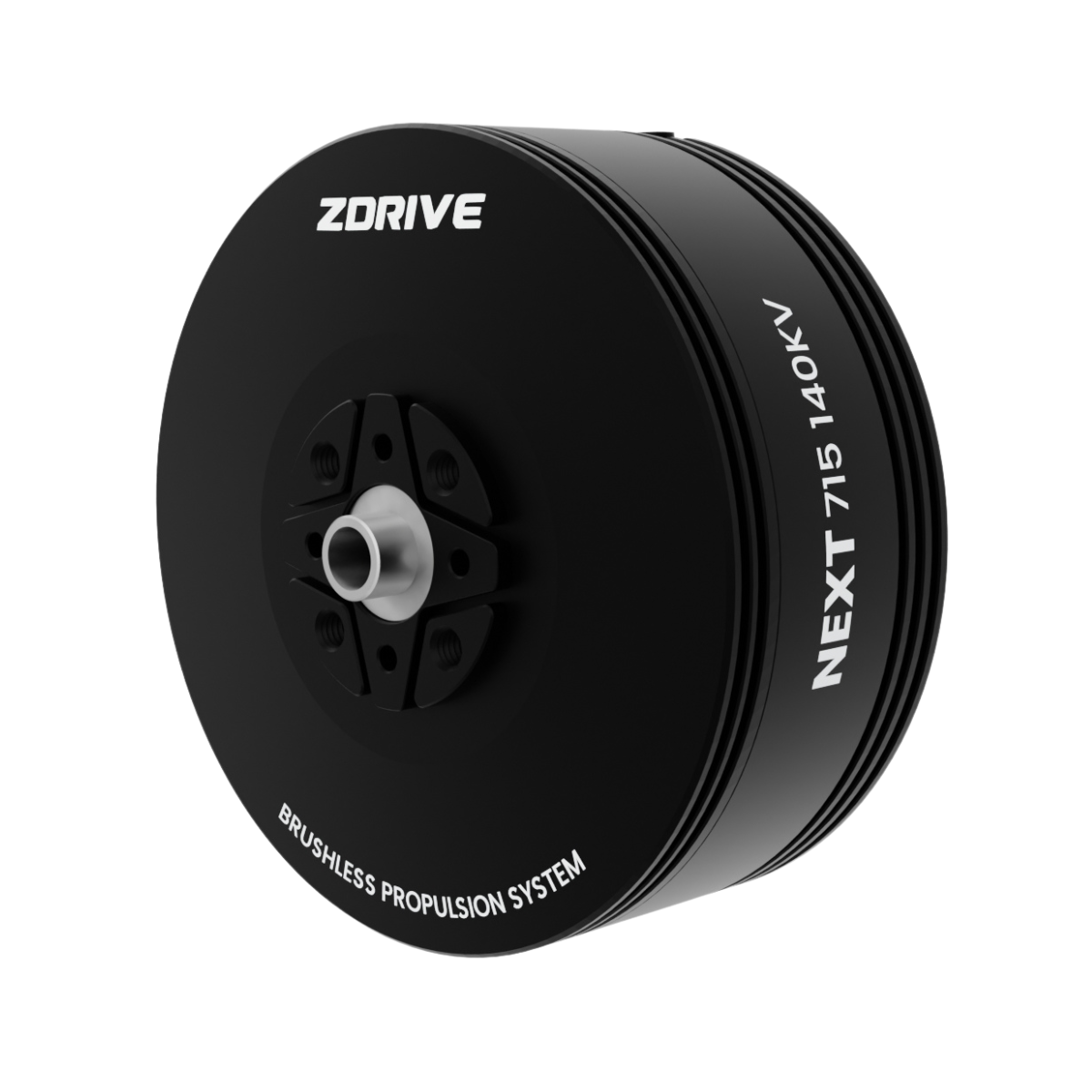

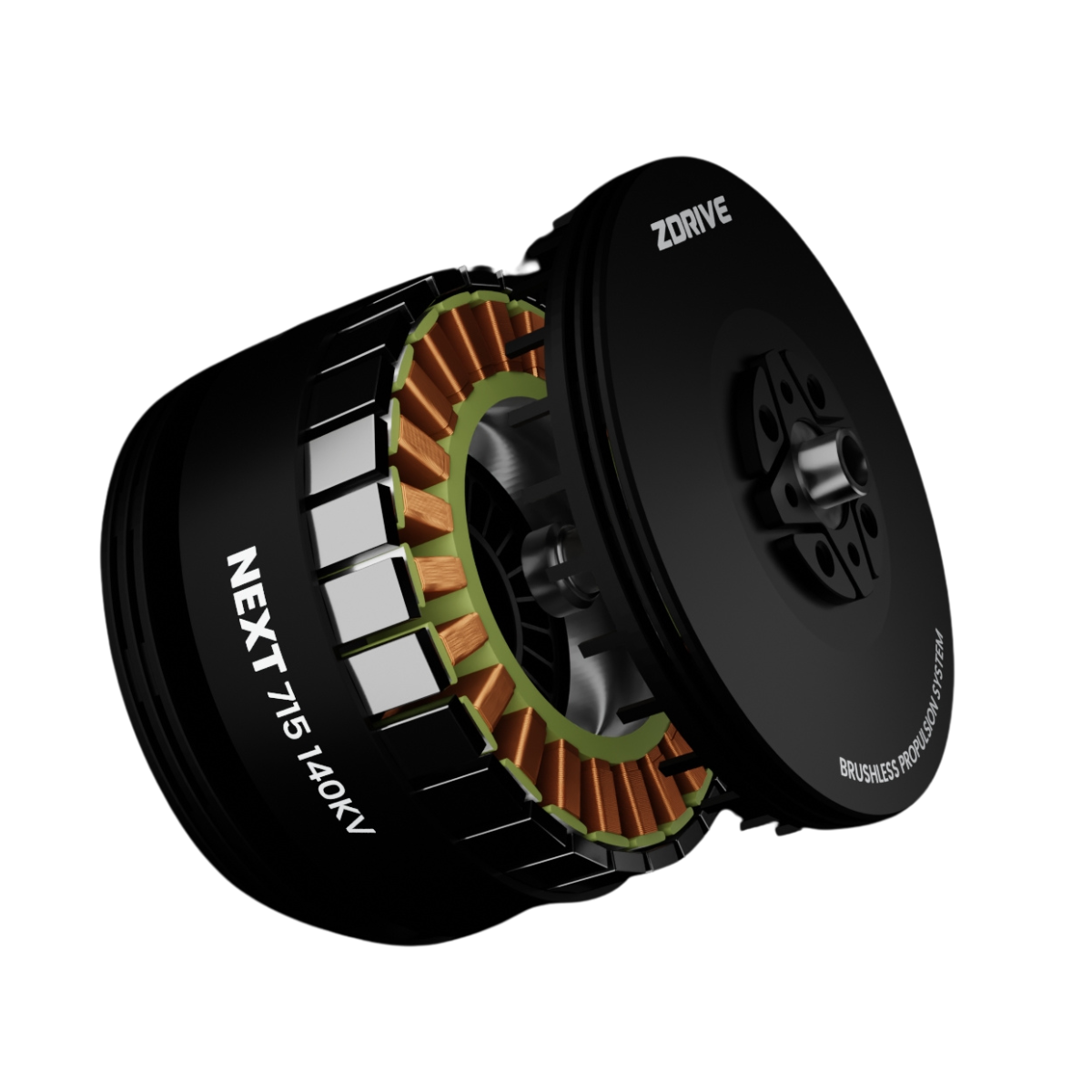

N715

N715 - Image 2

N715 - Image 3

N715 - Image 4

N715

₹21,500.00

Features

Motor Size :D:79.2 x 42.7 mm

Propeller Mounting Holes :D:20 M3×8, D:23 M4×4

Shaft Diameter :IN: 8 mm

IP rating :45

Varnished wire Degree :180°C

Magnet Degree :150°C

Rotor Balance :≤5 mg

Motor Mounting Holes :D:32 M4×4

Specifications

No Load Current :1.5A/ 22V

Motor Weight :450 g

Maximum Current :78.23 A

Maximum thrust :15.5 kg

Nominal Voltage :12S lipo battery

Internal Resistance :38.2mΩ

Maximum Power :3691.7 W

Maximum Torque :5.18 Nm

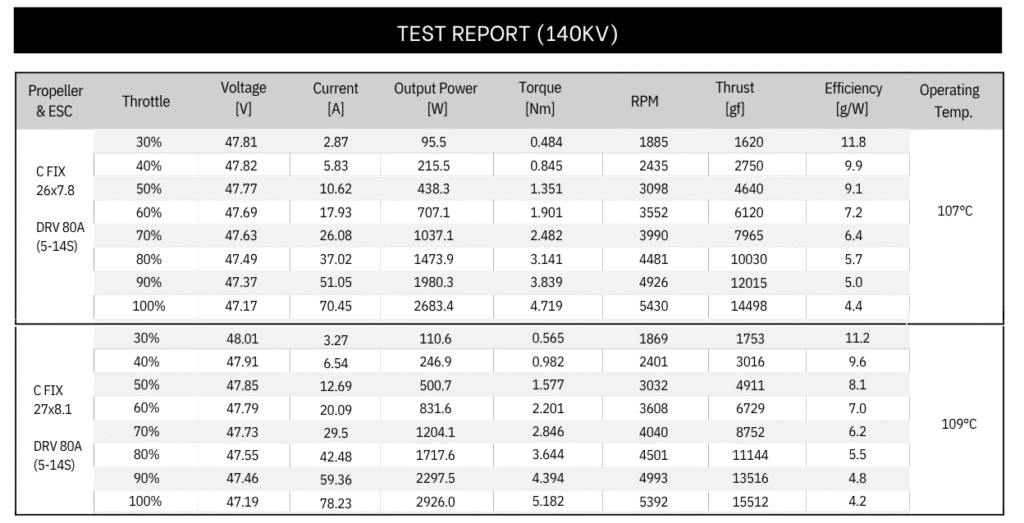

Training Data

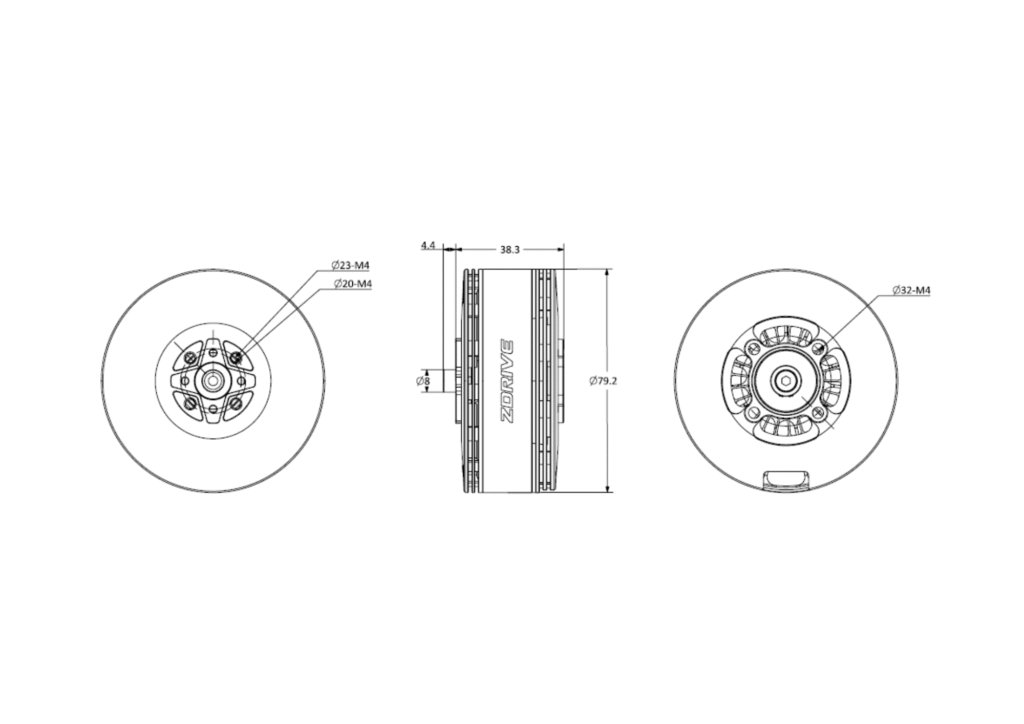

Motor CAD Drawing
