AIR 5008 (240KV / 340KV) BLDC Motor

₹8,499.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

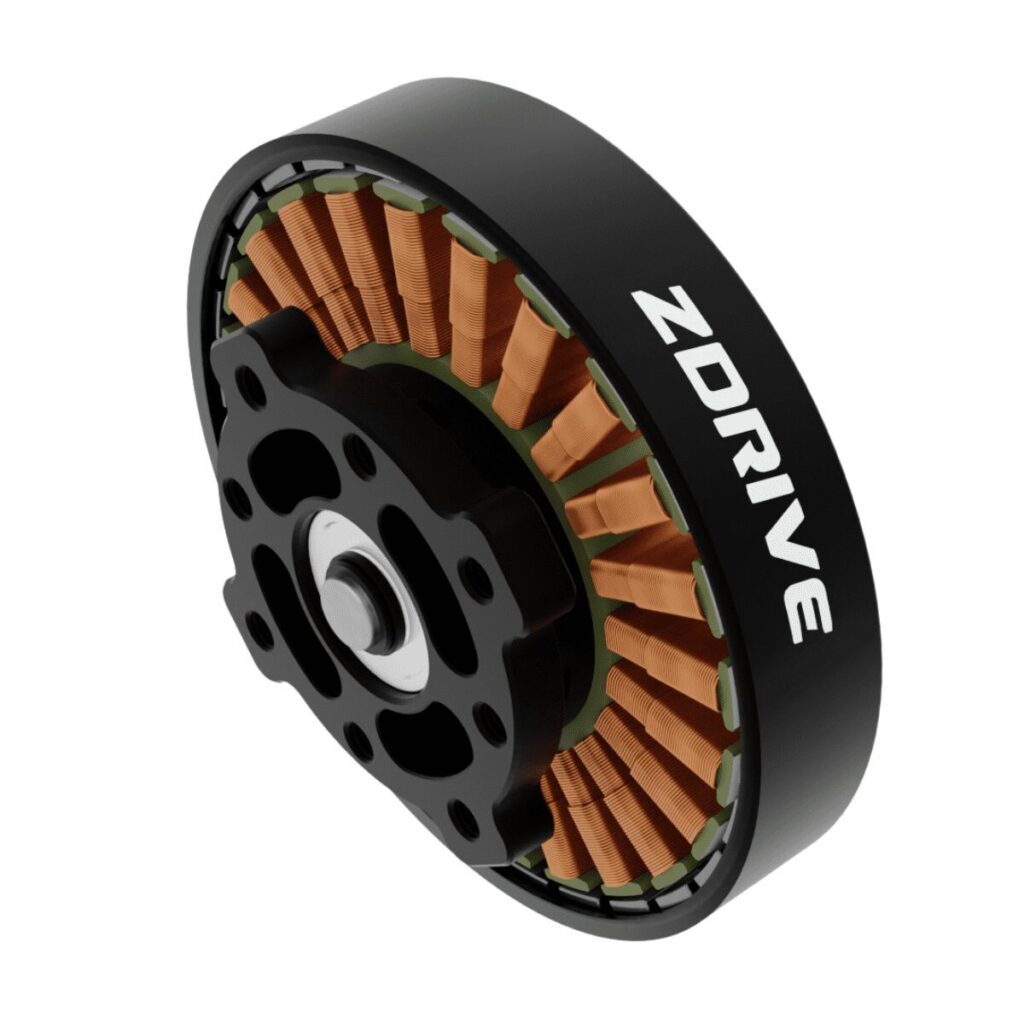

The AIR 5008 BLDC Motor combines precision engineering with robust power output to deliver class-leading thrust and performance for heavy-lift multirotor UAVs. Weighing between 131 and 172 g, it offers superior power-to-weight efficiency and consistent flight stability across demanding missions. Available in 240KV and 340KV variants, it supports 6S–8S LiPo systems for unmatched versatility in aerial applications.

KV Options

Clear

The AIR 5008 motor family is designed for professional UAVs requiring reliable propulsion, high thrust capacity, and smooth dynamic response. The motor produces up to 4.26 kg of thrust with peak power exceeding 730 W, making it suitable for cinematography, mapping, and industrial payload operations.

With an IP-rated thermal design and 150°C magnet and winding endurance, this motor ensures consistent performance under continuous operation. Each rotor is dynamically balanced to ≤5 mg, reducing vibration and enhancing flight control precision.

Both 240KV and 340KV variants provide optimised torque-speed characteristics to match diverse UAV setups—whether for endurance flights or responsive aerial manoeuvres.

Key Features

Powerful Thrust Capability: With a maximum thrust of up to 4.26 kg, this ensures superior lift for medium to heavy payloads.
Dual KV Options:
- 240KV: Optimised for efficiency and endurance on 6S–8S LiPo systems, ideal for mapping, survey, and long-duration flights.
- 340KV: Designed for agile, responsive flight with higher RPM and enhanced acceleration—perfect for professional cinematography drones.
High Thermal Endurance: 150°C-rated magnets and varnished copper windings ensure sustained operation under heavy loads.
Precision Balance: Rotor dynamically balanced to ≤5 mg for vibration-free performance and accurate IMU readings.
Durable Construction: CNC-machined aviation-grade aluminum housing for maximum structural integrity and cooling.
Smooth Current Flow: Internal resistance of 66–80 mΩ ensures low heat buildup and stable current delivery.
Broad ESC Compatibility: Works seamlessly with 40A ESCs (2–6S) featuring high-frequency PWM for fine throttle resolution.
Flexible Propeller Support: Optimised for 13–18 inch propellers depending on KV variant and voltage setup.

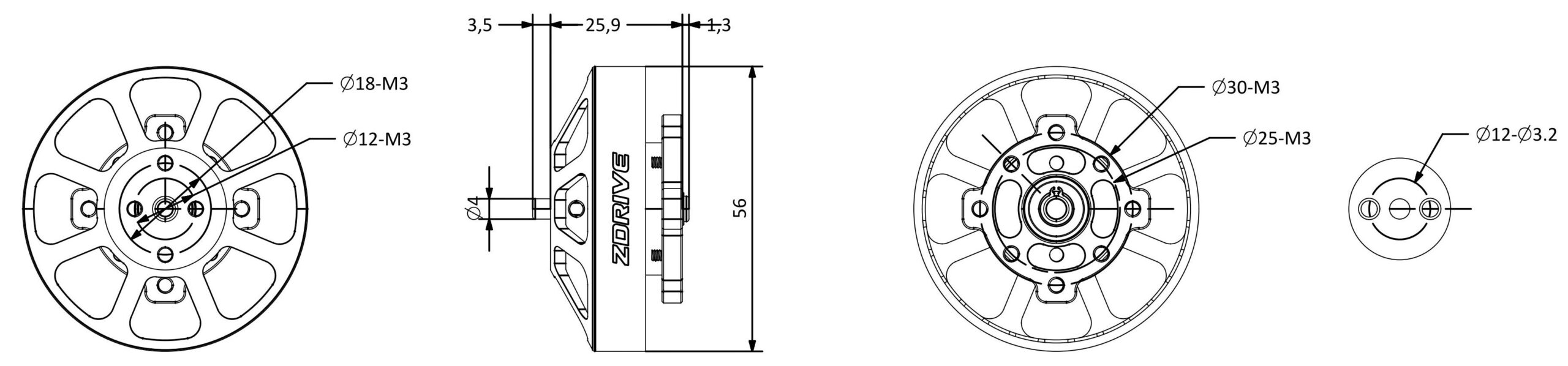

Motor Size	D:56x30.7 mm
Propeller Mounting Holes	D:12 M3x2, D:18 M3x2
Shaft Diameter	IN: 5 mm
IP rating	45
Varnished wire Degree	180°C
Magnet Degree	150°C
Rotor Balance	≤5 mg
Motor Mounting Holes	D:25 M3x4 D:30 M3x4

No Load Current	0.67 A/20V
Motor Weight	131 g
Maximum Current	24.56A
Maximum thrust	4.26 kg
Nominal Voltage	6-8S lipo battery
Internal Resistance	104mΩ
Maximum Power	793.7W
Maximum Torque	1.01 Nm

No Load Current	1.1 / 20V
Motor Weight	127g
Maximum Current	31.21 A
Maximum thrust	4.01 kg
Nominal Voltage	6S lipo battery
Internal Resistance	66.4mΩ
Maximum Power	734.7 W
Maximum Torque	0.94 Nm

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 17x5.8	30	32.12	0.95	20.2	0.088	2251	406	13.3	60°C
40	32.1	1.74	40.7	0.141	2851	662	11.9
50	32.05	3.09	77.1	0.207	3539	1031	10.4
60	32.04	5.04	129.6	0.293	4231	1452	9.0
DRV 40A (2-6S)	70	31.99	7.31	191.4	0.38	4793	1832	7.8
80	31.91	10.16	264.9	0.471	5348	2293	7.1
90	31.89	13.62	354.4	0.578	5886	2887	6.6
100	31.78	18.60	473.2	0.698	6478	3487	5.9
POLY FOLD 18X5.7	30	32.04	1.27	29.8	0.131	2178	526	12.9	73°C
40	32.09	2.49	62.0	0.214	2765	863	10.8
50	31.96	4.16	110.3	0.313	3363	1174	8.8
60	31.76	6.87	186.1	0.448	3989	1775	8.1
DRV 40A (2-6S)	70	31.69	10.13	269.3	0.565	4554	2218	6.9
80	31.9	13.84	355.7	0.699	4998	2992	6.8
90	31.84	18.27	469.6	0.831	5510	3594	6.2
100	31.66	24.48	613.2	0.98	5998	4190	5.4
C FIX 18X6.1	30	32.07	1.15	26.8	0.116	2209	472	12.8	65°C
40	32.03	2.11	51.6	0.176	2794	762	11.3
50	31.98	3.71	95.4	0.264	3446	1183	10.0
60	31.93	6.19	163.4	0.38	4102	1745	8.8
DRV 40A (2-6S)	70	31.88	8.89	241.3	0.48	4639	2182	7.7
80	31.82	12.24	329.1	0.592	5148	2692	6.9
90	31.76	16.38	433.2	0.712	5643	3218	6.2
100	31.68	22.31	576.1	0.864	6182	3931	5.6
C FIX 20x6	30	23.94	0.80	13.3	0.09	1586	306	16.0	92°C
40	23.92	1.63	29.4	0.137	2087	552	14.2
50	23.92	2.66	50.6	0.197	2493	842	13.2
60	23.85	4.79	91.5	0.286	3094	1252	11.0
DRV 40A (2-6S)	70	23.81	7.01	134.4	0.361	3511	1648	9.9
80	23.79	9.59	184.1	0.456	3908	2061	9.0
90	23.75	12.30	236.5	0.532	4259	2424	8.3
100	23.64	16.68	315.7	0.646	4685	2931	7.4
C FIX 21x6.3	30	23.91	0.93	15.8	0.1	1553	361	16.2	92°C
40	23.88	1.89	33.9	0.161	2047	647	14.3
50	23.88	3.32	64.1	0.244	2504	1014	12.8
60	23.82	5.39	105.9	0.344	2952	1423	11.1
DRV 40A (2-6S)	70	23.76	8.29	161.2	0.456	3398	1922	9.8
80	23.73	11.29	216.9	0.553	3772	2347	8.8
90	23.64	14.78	279.3	0.654	4089	2772	7.9
100	23.61	19.50	367.6	0.787	4482	3300	7.2
C FIX 22x6.6	30	23.94	1.01	18.6	0.116	1516	416	17.2	95°C
40	23.92	2.26	41.7	0.201	2019	759	14.0
50	23.84	3.65	70.1	0.282	2394	1108	12.7
60	23.83	6.17	117.3	0.394	2879	1586	10.8
DRV 40A (2-6S)	70	23.76	9.34	177.2	0.507	3298	2114	9.5
80	23.68	12.48	234.7	0.619	3629	2552	8.6
90	23.61	16.53	304.9	0.737	3972	3026	7.8
100	23.52	22.25	396.9	0.88	4322	3568	6.8
POLY FOLD 22X7	30	24.07	1.40	24.8	0.163	1457	546	16.2	80°C
40	24.1	3.16	57.8	0.289	1956	1024	13.4
50	24.02	5.02	92.5	0.392	2259	1406	11.7
60	24.01	8.26	151.3	0.542	2676	1973	9.9
DRV 40A (2-6S)	70	23.89	12.34	218.6	0.689	3047	2544	8.6
80	23.85	17.31	290.6	0.837	3349	3096	7.5
90	23.72	22.60	361	0.964	3592	3558	6.6
100	23.64	29.87	445.7	1.103	3856	4046	5.7

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 17x5.8	30	24.09	1.20	18.6	0.086	2189	382	13.5	72°C
40	23.73	2.44	44.9	0.147	2876	708	12
50	23.81	4.36	81.6	0.221	3582	1096	10.4
60	24.06	6.70	126.3	0.291	4194	1489	9.3
DRV 40A (2-6S)	70	23.73	9.39	183.1	0.371	4728	1861	8.2
80	23.82	12.89	249.6	0.457	5244	2333	7.6
90	23.68	16.94	326.5	0.546	5754	2792	6.9
100	23.71	23.28	441	0.668	6313	3367	6.2
POLY FOLD 18X5.7	30	24.14	1.50	26.2	0.121	2092	482	13.1	73°C
40	24.11	3.40	64.8	0.224	2782	941	11.3
50	24.09	6.00	113.2	0.316	3448	1430	10
60	23.97	9.34	180.2	0.431	3997	1887	8.3
DRV 40A (2-6S)	70	23.95	13.01	251.3	0.534	4486	2241	7.2
80	23.92	17.83	336.8	0.653	4914	2938	6.8
90	23.82	23.42	431.2	0.772	5351	3521	6.3
100	23.63	27.75	556.2	0.913	5818	3992	5.4
C FIX 18X6.1	30	32.07	1.15	26.8	0.116	2209	421	13.5	83°C
40	32.03	2.11	51.6	0.176	2794	721	11.7
50	31.98	3.71	95.4	0.264	3454	1198	10.3
60	31.93	6.19	163.4	0.38	4102	1684	9.2
DRV 40A (2-6S)	70	31.88	8.89	241.3	0.48	4646	2184	8.3
80	31.82	12.24	329.1	0.592	5151	2649	7.5
90	31.76	16.38	433.2	0.712	5636	3194	6.7
100	31.68	22.31	576.1	0.864	6178	3824	6.1
C FIX 19x5.7	30	23.87	1.41	23.5	0.107	2131	461	13.6	86°C
40	23.85	2.64	47.1	0.167	2701	754	11.8
50	23.81	5.42	102.3	0.284	3485	1315	10.1
60	23.75	8.35	160.6	0.381	4052	1792	9.2
DRV 40A (2-6S)	70	23.71	11.76	226	0.473	4548	2228	8
80	23.58	15.84	303.1	0.578	5016	2741	7.3
90	23.53	20.68	389.3	0.684	5452	3268	6.8
100	23.41	27.72	508.4	0.817	5952	3927	6

Download Test Data

The AIR 5008 BLDC Motor is engineered for professional UAV platforms demanding high thrust, efficiency, and long operational life. With its 56×30.7 mm compact design, it balances lightweight construction with outstanding torque output—providing stable, vibration-free power for quadcopters, hexacopters, and octocopters.

Built from aerospace-grade materials, the AIR 5008 maintains smooth operation even under sustained workloads. Its precise magnetic alignment and low-noise bearing system deliver optimal stability and motor responsiveness, ideal for aerial mapping, inspection, and heavy-lift cinematography.

Whether used in endurance-focused drones (240KV) or performance-tuned builds (340KV), the AIR 5008 ensures reliable, efficient, and powerful flight under diverse mission profiles.

Build & Materials

Each AIR 5008 motor is built to uncompromising industrial and aerospace standards:

CNC-machined aviation aluminum casing for rigidity and efficient heat dissipation.
180°C varnished copper windings for superior insulation and durability.
Precision stainless steel bearings for ultra-smooth, low-resistance rotation.
Epoxy-coated stator core for corrosion and humidity protection.
Dynamically balanced rotors (≤5 mg) for consistent rotational accuracy and minimal vibration.
IP35-equivalent protection against dust and light moisture.

Technical Tips for Optimal Performance

Maximise performance and reliability with these setup guidelines:

Use 40A ESCs rated for high-frequency PWM (≥32 kHz) for responsive throttle control.
240KV variant: Best paired with 15–18 inch carbon or composite propellers on 6S–8S LiPo for endurance flights.
340KV variant: Performs optimally with 13–15 inch propellers on 6S LiPo for dynamic aerial work.
Enable Active Braking (Damped Light) in ESC firmware for controlled descents.
Mount motors with vibration-damping standoffs to protect sensitive flight sensors.
Use 14–16 AWG silicone wires for efficient power transfer and minimal resistance.
Conduct gradual throttle calibration tests to monitor temperature and current draw before full deployment.

Safety & Maintenance Tips

Ensure safe and reliable operation by following these care guidelines:

Always balance propellers before flight to prevent vibration and bearing wear.
Do not exceed rated current, thrust, or voltage limits to avoid overheating.
Maintain adequate cooling airflow around the motor during prolonged operation.
Inspect and clean bearings periodically with non-corrosive lubricants.
Keep motor temperature below 80°C during continuous operation.
Store motors in a dry, dust-free environment when not in use.

FAQs

The AIR 5008 is ideal for medium to heavy-lift drones, including aerial photography, industrial mapping, surveying, and delivery UAVs.

240KV: Offers higher torque and lower RPM; best for endurance and payload efficiency.
340KV: Provides higher RPM and quicker response; ideal for agile, performance-oriented UAVs.

AIR 50088 BLDC motor's output is up to 4.26 kg with the appropriate propeller and voltage configuration.

Supports 6–8S LiPo batteries depending on your desired flight dynamics and payload requirements.

Yes, it integrates seamlessly with quadcopters, hexacopters, and octocopters across professional UAV platforms.

Built with high-temperature magnets, varnished windings, and IP-rated protection, the AIR 5008 delivers consistent performance in diverse environmental conditions.
