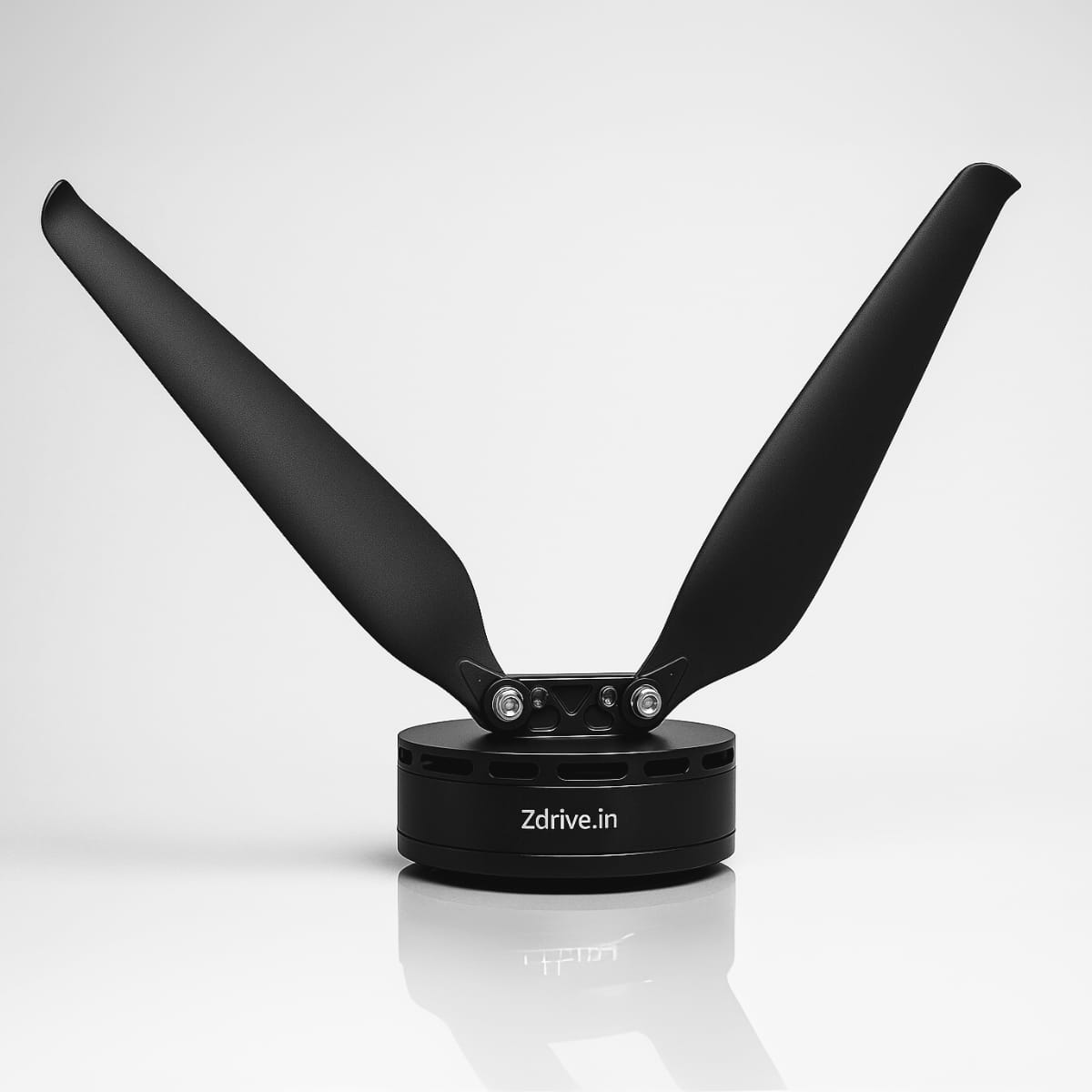

BOLT 5008 (240KV / 340KV) BLDC Motor

₹14,000.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

The BOLT 5008 BLDC Motor is a high-performance propulsion system designed for professional multirotor UAVs. Weighing only 132–142 g, it achieves superior power-to-weight efficiency, offering consistent thrust and smooth power delivery across various drone configurations.

Available in 240KV and 340KV variants, it supports 6S LiPo systems, providing flexibility for both endurance-focused and high-speed aerial operations.

KV Options

Clear

The BOLT 5008 motor family is engineered for UAV applications requiring dependable thrust, smooth control, and thermal stability. With a maximum thrust of 4.19 kg and power output up to 775 W, it provides exceptional propulsion for cinematography drones, mapping UAVs, and payload platforms.

Both 240KV and 340KV variants deliver refined torque-speed balance—the 240KV excelling in endurance and the 340KV in maneuverability. Equipped with 150°C-rated magnets, 180°C varnished windings, and IP-rated construction, the BOLT 5008 ensures consistent reliability under prolonged operation. Its ≤5 mg rotor balance tolerance guarantees low vibration and superior stability.

Key Features

Strong Thrust Output: Up to 4.19 kg thrust with excellent torque response.
Dual KV Options:
- 240KV: For long-endurance, energy-efficient flights.
- 340KV: For agile, performance-focused missions.
High Thermal Durability: 150°C magnets and 180°C copper windings withstand continuous heavy loads.
Precision Rotor Balance: ≤5 mg dynamic balance ensures minimal vibration.
Lightweight Design: Only 132–142 g, delivering excellent thrust-to-weight ratio
Smooth Electrical Flow: Internal resistance 66–74 mΩ for low heat buildup and high efficiency.
Wide ESC Compatibility: Works with 40A ESCs (2–6S) supporting high-frequency PWM.
Propeller Flexibility: Supports 13–18 inch propellers depending on KV and voltage.

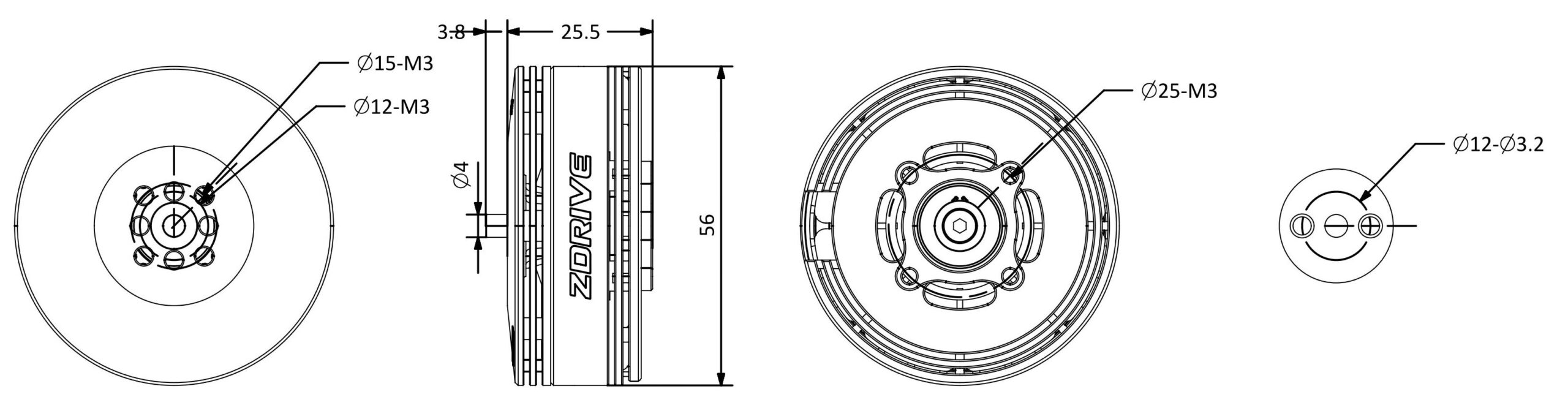

Motor Size	D:56 x 29.3 mm
Propeller Mounting Holes	D:12 M3x4, D:15 M3x4
Shaft Diameter	IN: 6 mm
IP rating	45
Varnished wire Degree	180°C
Magnet Degree	150°C
Rotor Balance	≤5 mg
Motor Mounting Holes	D:25 M3x4

No Load Current	1.1A/ 20V
Motor Weight	136 g
Maximum Current	31.21 A
Maximum thrust	4.01 kg
Nominal Voltage	6S lipo battery
Internal Resistance	66.4mΩ
Maximum Power	642.9W
Maximum Torque	0.94 Nm

No Load Current	0.67 A/ 20V
Motor Weight	142 g
Maximum Current	24.48 A
Maximum thrust	4.19 kg
Nominal Voltage	6S lipo battery
Internal Resistance	104mΩ
Maximum Power	775.2W
Maximum Torque	0.98 Nm

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 17x5.8	30	32.12	0.95	20.2	0.088	2251	406	13.3	60°C
	40	32.1	1.74	40.7	0.141	2851	662	11.9
	50	32.05	3.09	77.1	0.207	3539	1031	10.4
	60	32.04	5.04	129.6	0.293	4231	1452	9.0
DRV 40A (2-6S)	70	31.99	7.31	191.4	0.38	4793	1832	7.8
	80	31.91	10.16	264.9	0.471	5348	2293	7.1
	90	31.89	13.62	354.4	0.578	5886	2887	6.6
	100	31.78	18.60	473.2	0.698	6478	3487	5.9
POLY FOLD 18X5.7	30	32.04	1.27	29.8	0.131	2178	526	12.9	73°C
	40	32.09	2.49	62.0	0.214	2765	863	10.8
	50	31.96	4.16	110.3	0.313	3363	1174	8.8
	60	31.76	6.87	186.1	0.448	3989	1775	8.1
DRV 40A (2-6S)	70	31.69	10.13	269.3	0.565	4554	2218	6.9
	80	31.9	13.84	355.7	0.699	4998	2992	6.8
	90	31.84	18.27	469.6	0.831	5510	3594	6.2
	100	31.66	24.48	613.2	0.98	5998	4190	5.4
C FIX 18X6.1	30	32.07	1.15	26.8	0.116	2209	472	12.8	65°C
	40	32.03	2.11	51.6	0.176	2794	762	11.3
	50	31.98	3.71	95.4	0.264	3446	1183	10.0
	60	31.93	6.19	163.4	0.38	4102	1745	8.8
DRV 40A (2-6S)	70	31.88	8.89	241.3	0.48	4639	2182	7.7
	80	31.82	12.24	329.1	0.592	5148	2692	6.9
	90	31.76	16.38	433.2	0.712	5643	3218	6.2
	100	31.68	22.31	576.1	0.864	6182	3931	5.6
C FIX 20x6	30	23.94	0.80	13.3	0.09	1586	306	16.0	92°C
	40	23.92	1.63	29.4	0.137	2087	552	14.2
	50	23.92	2.66	50.6	0.197	2493	842	13.2
	60	23.85	4.79	91.5	0.286	3094	1252	11.0
DRV 40A (2-6S)	70	23.81	7.01	134.4	0.361	3511	1648	9.9
	80	23.79	9.59	184.1	0.456	3908	2061	9.0
	90	23.75	12.30	236.5	0.532	4259	2424	8.3
	100	23.64	16.68	315.7	0.646	4685	2931	7.4
C FIX 21x6.3	30	23.91	0.93	15.8	0.1	1553	361	16.2	92°C
	40	23.88	1.89	33.9	0.161	2047	647	14.3
	50	23.88	3.32	64.1	0.244	2504	1014	12.8
	60	23.82	5.39	105.9	0.344	2952	1423	11.1
DRV 40A (2-6S)	70	23.76	8.29	161.2	0.456	3398	1922	9.8
	80	23.73	11.29	216.9	0.553	3772	2347	8.8
	90	23.64	14.78	279.3	0.654	4089	2772	7.9
	100	23.61	19.50	367.6	0.787	4482	3300	7.2
C FIX 22x6.6	30	23.94	1.01	18.6	0.116	1516	416	17.2	95°C
	40	23.92	2.26	41.7	0.201	2019	759	14.0
	50	23.84	3.65	70.1	0.282	2394	1108	12.7
	60	23.83	6.17	117.3	0.394	2879	1586	10.8
DRV 40A (2-6S)	70	23.76	9.34	177.2	0.507	3298	2114	9.5
	80	23.68	12.48	234.7	0.619	3629	2552	8.6
	90	23.61	16.53	304.9	0.737	3972	3026	7.8
	100	23.52	22.25	396.9	0.88	4322	3568	6.8
POLY FOLD 22X7	30	24.07	1.40	24.8	0.163	1457	546	16.2	80°C
	40	24.1	3.16	57.8	0.289	1956	1024	13.4
	50	24.02	5.02	92.5	0.392	2259	1406	11.7
	60	24.01	8.26	151.3	0.542	2676	1973	9.9
DRV 40A (2-6S)	70	23.89	12.34	218.6	0.689	3047	2544	8.6
	80	23.85	17.31	290.6	0.837	3349	3096	7.5
	90	23.72	22.60	361	0.964	3592	3558	6.6
	100	23.64	29.87	445.7	1.103	3856	4046	5.7

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 17x5.8	30	24.09	1.20	18.6	0.086	2189	382	13.5	72°C
	40	23.73	2.44	44.9	0.147	2876	708	12
	50	23.81	4.36	81.6	0.221	3582	1096	10.4
	60	24.06	6.70	126.3	0.291	4194	1489	9.3
DRV 40A (2-6S)	70	23.73	9.39	183.1	0.371	4728	1861	8.2
	80	23.82	12.89	249.6	0.457	5244	2333	7.6
	90	23.68	16.94	326.5	0.546	5754	2792	6.9
	100	23.71	23.28	441	0.668	6313	3367	6.2
POLY FOLD 18X5.7	30	24.14	1.50	26.2	0.121	2092	482	13.1	73°C
	40	24.11	3.40	64.8	0.224	2782	941	11.3
	50	24.09	6.00	113.2	0.316	3448	1430	10
	60	23.97	9.34	180.2	0.431	3997	1887	8.3
DRV 40A (2-6S)	70	23.95	13.01	251.3	0.534	4486	2241	7.2
	80	23.92	17.83	336.8	0.653	4914	2938	6.8
	90	23.82	23.42	431.2	0.772	5351	3521	6.3
	100	23.63	27.75	556.2	0.913	5818	3992	5.4
C FIX 18X6.1	30	32.07	1.15	26.8	0.116	2209	421	13.5	83°C
	40	32.03	2.11	51.6	0.176	2794	721	11.7
	50	31.98	3.71	95.4	0.264	3454	1198	10.3
	60	31.93	6.19	163.4	0.38	4102	1684	9.2
DRV 40A (2-6S)	70	31.88	8.89	241.3	0.48	4646	2184	8.3
	80	31.82	12.24	329.1	0.592	5151	2649	7.5
	90	31.76	16.38	433.2	0.712	5636	3194	6.7
	100	31.68	22.31	576.1	0.864	6178	3824	6.1
C FIX 19x5.7	30	23.87	1.41	23.5	0.107	2131	461	13.6	86°C
	40	23.85	2.64	47.1	0.167	2701	754	11.8
	50	23.81	5.42	102.3	0.284	3485	1315	10.1
	60	23.75	8.35	160.6	0.381	4052	1792	9.2
DRV 40A (2-6S)	70	23.71	11.76	226	0.473	4548	2228	8
	80	23.58	15.84	303.1	0.578	5016	2741	7.3
	90	23.53	20.68	389.3	0.684	5452	3268	6.8
	100	23.41	27.72	508.4	0.817	5952	3927	6

The BOLT 5008 BLDC Motor delivers professional-grade propulsion performance for drones requiring reliable lift, consistent efficiency, and superior flight control. Its compact 56×29.3 mm build combines low weight with high structural integrity, ensuring stable performance in a variety of UAV configurations—quadcopters, hexacopters, or octocopters.

Built with aerospace-grade aluminum, Neodymium magnets, and precision bearings, the motor ensures quiet operation, low vibration, and long service life. Whether you prioritize long flight times (240KV) or responsive maneuvering (340KV), the BOLT 5008 is engineered to deliver consistent, high-quality performance for mission-critical UAVs.

Build & Materials

Each BOLT 5008 motor is crafted to exacting industrial and aerospace standards:

CNC-machined aviation-grade aluminum casing for maximum strength and heat dissipation.
180°C-rated copper windings with premium insulation varnish.
Stainless steel bearings for ultra-smooth rotation and long service life.
Epoxy-coated stator core ensures corrosion and moisture resistance.
Rotor dynamically balanced (≤5 mg) for precision rotation and minimal vibration.
IP35-equivalent protection against dust and light moisture.

Technical Tips for Optimal Performance

Enhance motor performance and longevity with the following setup guidelines:

Use 40A ESCs supporting ≥32 kHz PWM for responsive throttle control.
240KV variant: Pair with 15–18″ propellers on 6S LiPo for endurance and payload lift.
340KV variant: Pair with 13–15″ propellers on 6S LiPo for dynamic and agile flight.
Enable Active Braking (Damped Light) in ESC firmware for smooth deceleration.
Mount with vibration-damping standoffs to protect flight sensors and IMU.
Use 14–16 AWG silicone wires to reduce resistance and improve current flow.
Gradually test throttle response to monitor current draw and motor temperature.

Safety & Maintenance Tips

Keep your BOLT 5008 in peak condition with these practices:

Balance propellers before flight to reduce vibration and bearing stress.
Avoid exceeding rated thrust or current to prevent overheating.
Maintain adequate cooling airflow around the motor.
Periodically inspect and lubricate bearings with non-corrosive lubricants.
Keep operating temperature below 80°C for continuous operation.
Store in a dry, dust-free environment when not in use.
