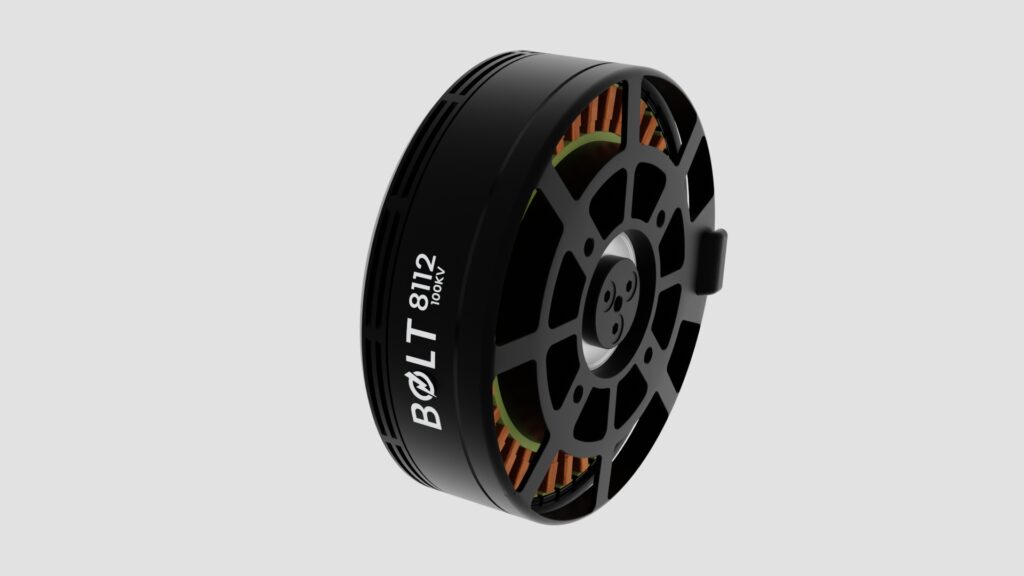

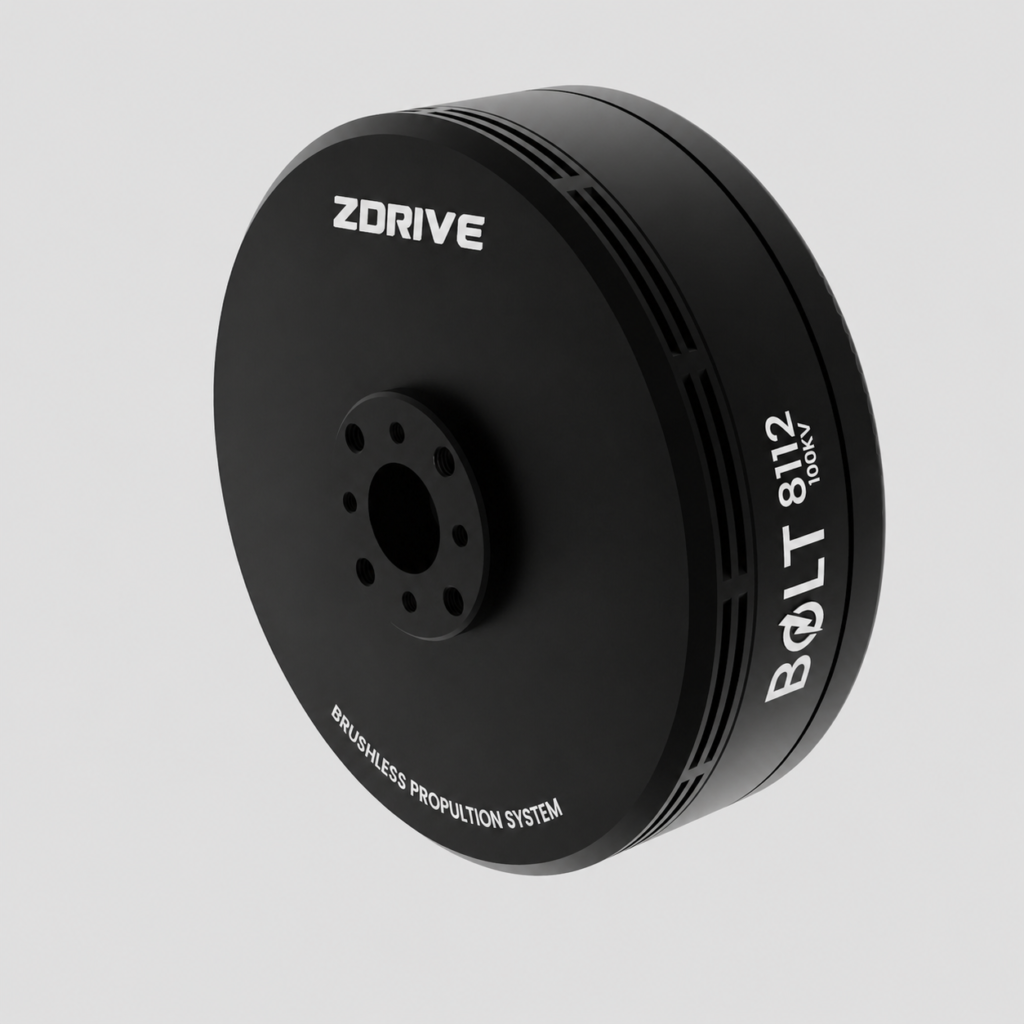

BOLT 8112

₹20,000.00

Features

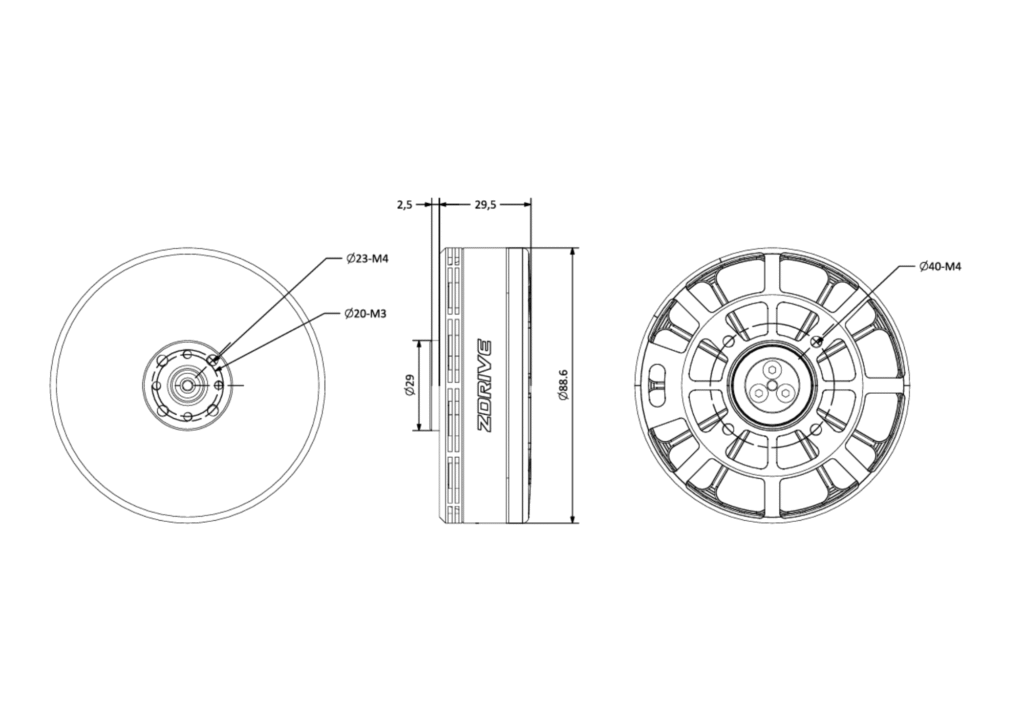

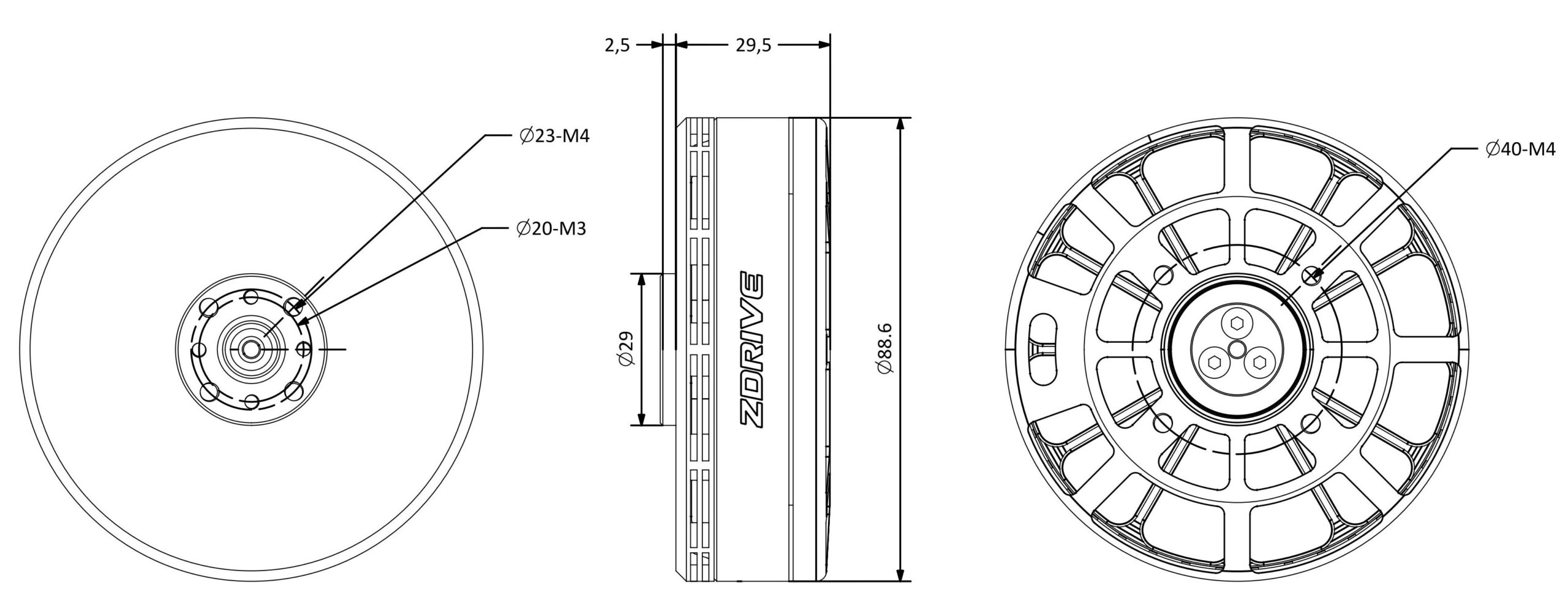

Motor Size :D:88.6 x 32.5 mm

Propeller Mounting Holes :D:2 M3x4, D:23 M4x4

Shaft Diameter :IN: 15 mm

IP rating :35

Varnished wire Degree :180°C

Magnet Degree :150°C

Rotor Balance :≤10 mg

Motor Mounting Holes :D:40 M4x4

Specifications

No Load Current :1.1A/ 20V

Motor Weight :382 g

Maximum Current :40.72 A

Maximum thrust :11.09 kg

Nominal Voltage :12S lipo battery

Internal Resistance :91mΩ

Maximum Power :1922W

Maximum Torque :3.98 Nm

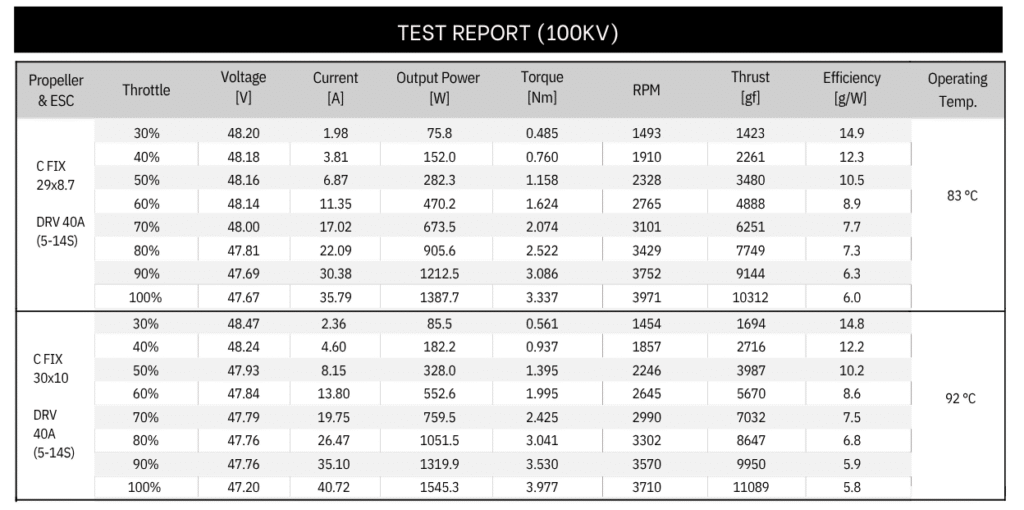

Training Data
