N1017

₹34,500.00

15 in stock

Features

Motor Size :D:118 x41.3 mm

Propeller Mounting Holes :D:23 M3x4

Shaft Diameter :IN: 15 mm

IP rating :35

Varnished wire Degree :220°C

Magnet Degree :180°C

Rotor Balance :≤10 mg

Motor Mounting Holes :D:40 M4x4, D:50 M4x4

Specifications

No Load Current :3.1A/30V

Motor Weight :857 g

Maximum Current :133.9 A

Maximum thrust :28.81 kg

Nominal Voltage :12-14S lipo battery

Internal Resistance :27.5mΩ

Maximum Power :7484.3 W

Maximum Torque :11.87 Nm

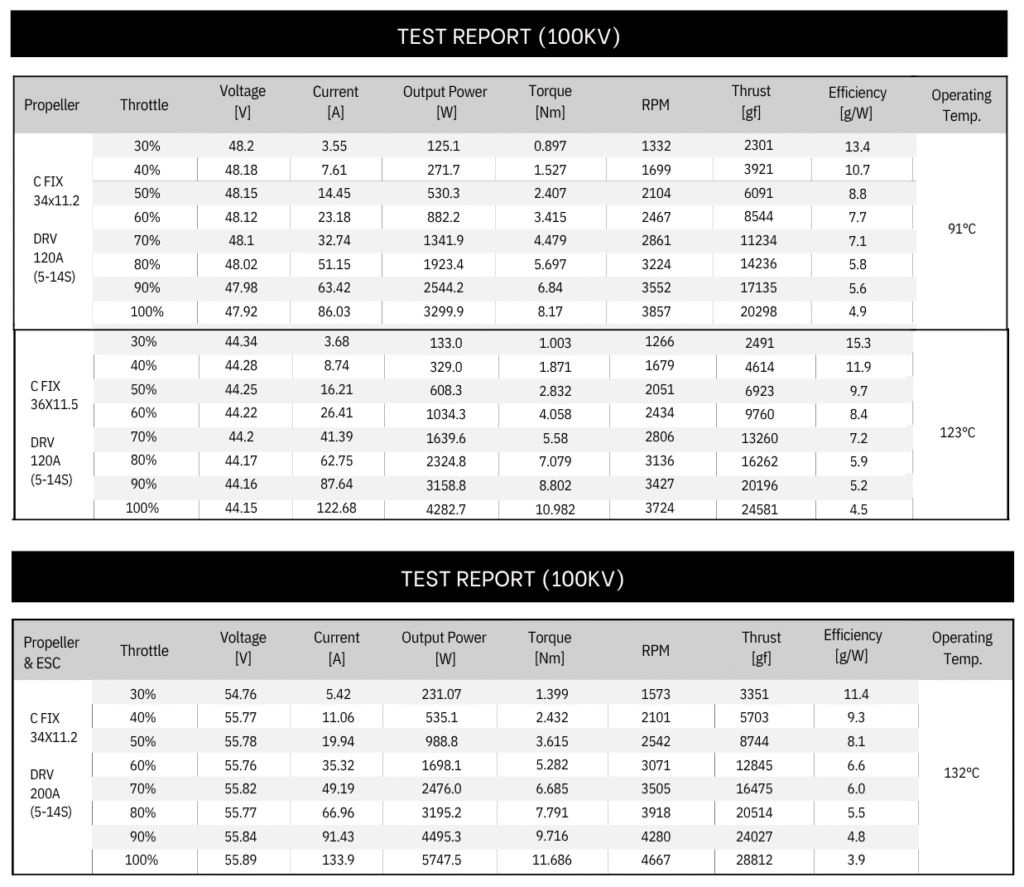

Training Data

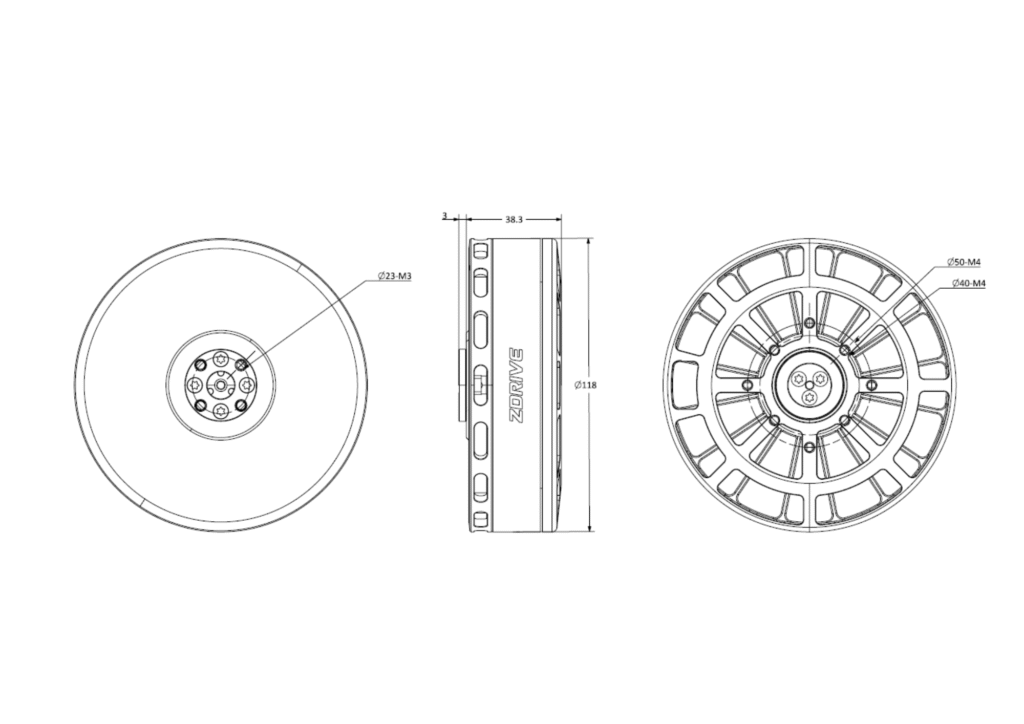

Motor CAD Drawing
