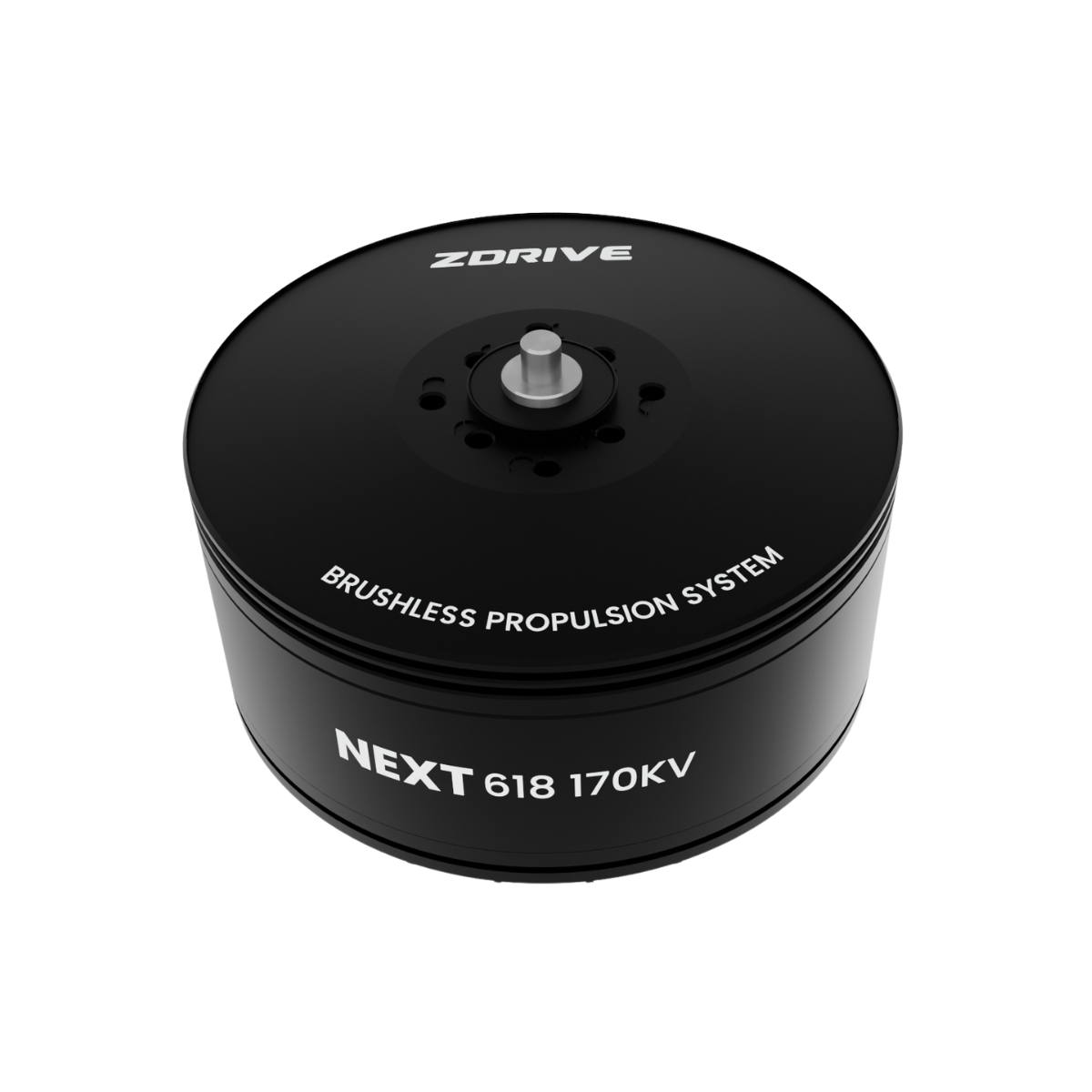

N618

₹18,500.00

Features

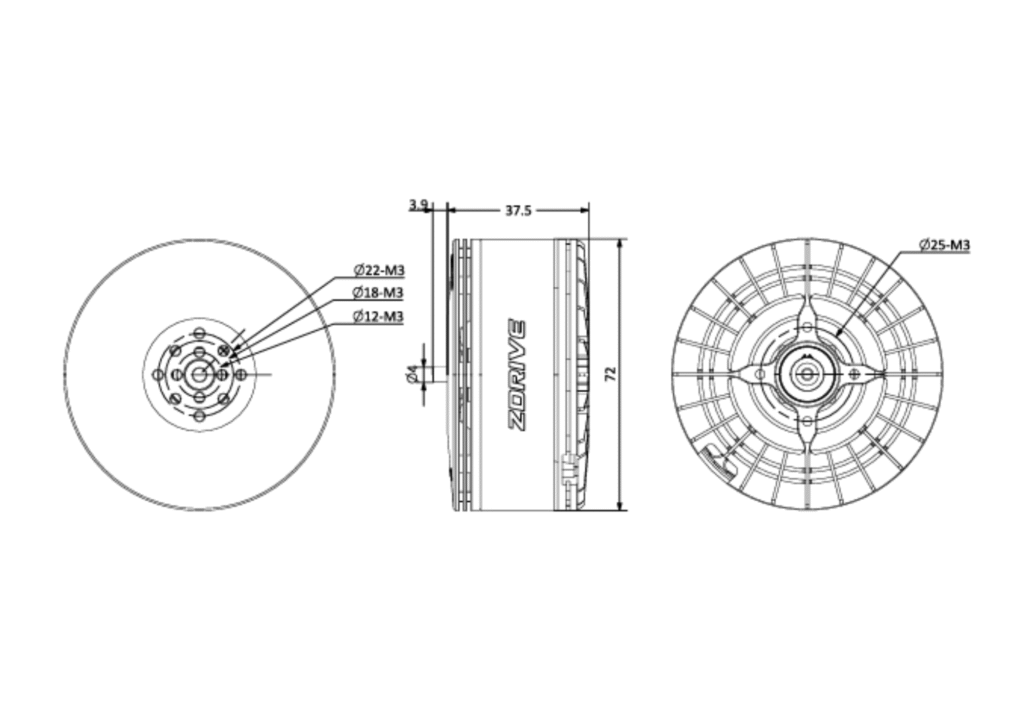

Motor Size :D:72 x 41.4 mm

Propeller Mounting Holes :D:12 M3×4, D:18 M3×4, D:22 M3×4

Shaft Diameter :IN: 6 mm

IP rating :45

Varnished wire Degree :180°C

Magnet Degree :150°C

Rotor Balance :≤5 mg

Motor Mounting Holes :D:25 M3×4

Specifications

No Load Current :1.6A/ 30V

Motor Weight :380 g

Maximum Current :73.1 A

Maximum thrust :13.3 kg

Nominal Voltage :12S lipo battery

Internal Resistance :48mΩ

Maximum Power :3429W

Maximum Torque :4.28 Nm

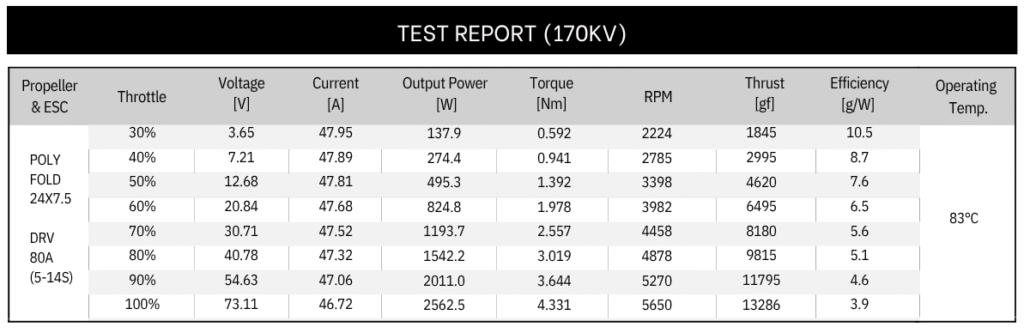

Training Data
