NEXT 1010 Heavy-Lift BLDC Motor Series

₹31,999.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

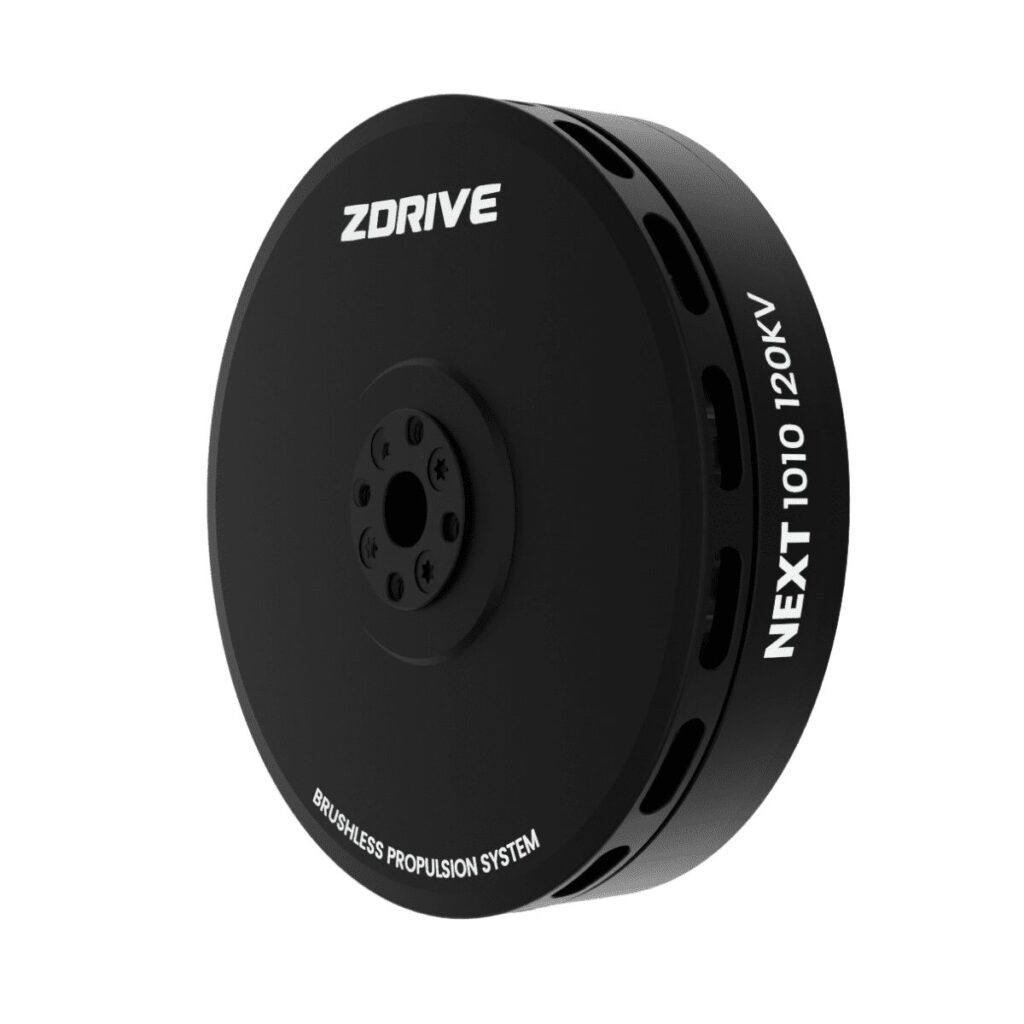

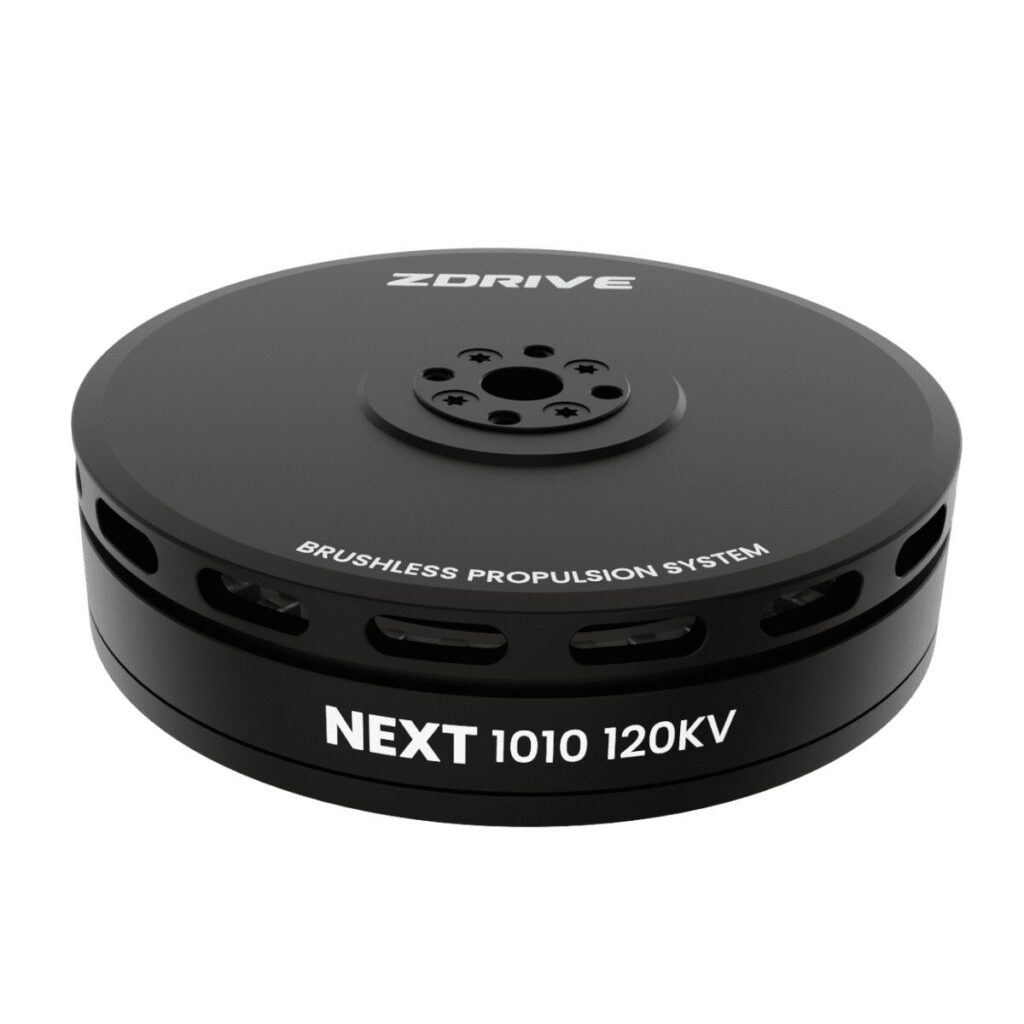

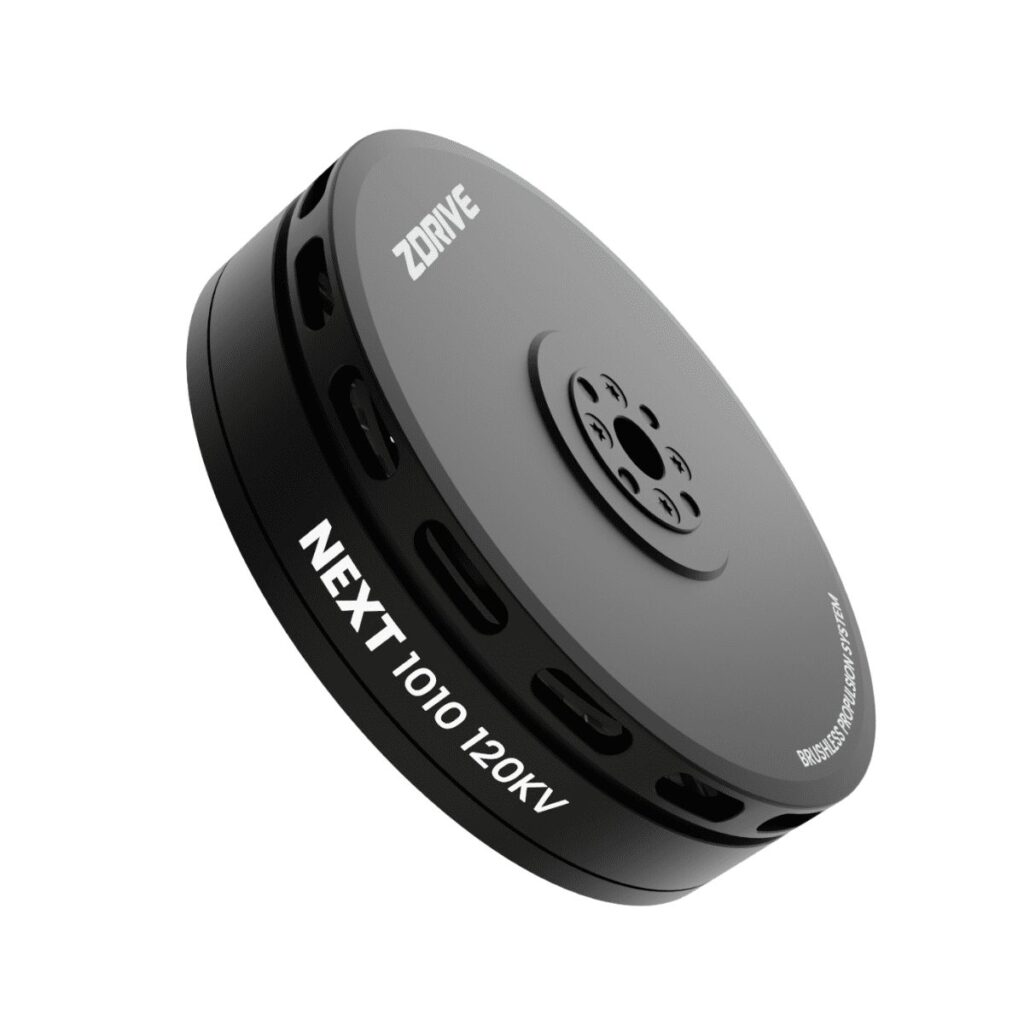

The ZDrive NEXT 1010 series offers high-performance propulsion tailored for extra-heavy-lift drone missions. The 100KV model provides maximum torque for large propellers and extreme lift, while the 120KV model offers a more balanced torque–RPM profile suitable for faster-response heavy drones. With a 118 × 34.3 mm form factor, aerospace-grade construction, the NEXT 1010 series is ideal for UAV designers needing durability, motor smoothness, and exceptional power efficiency.

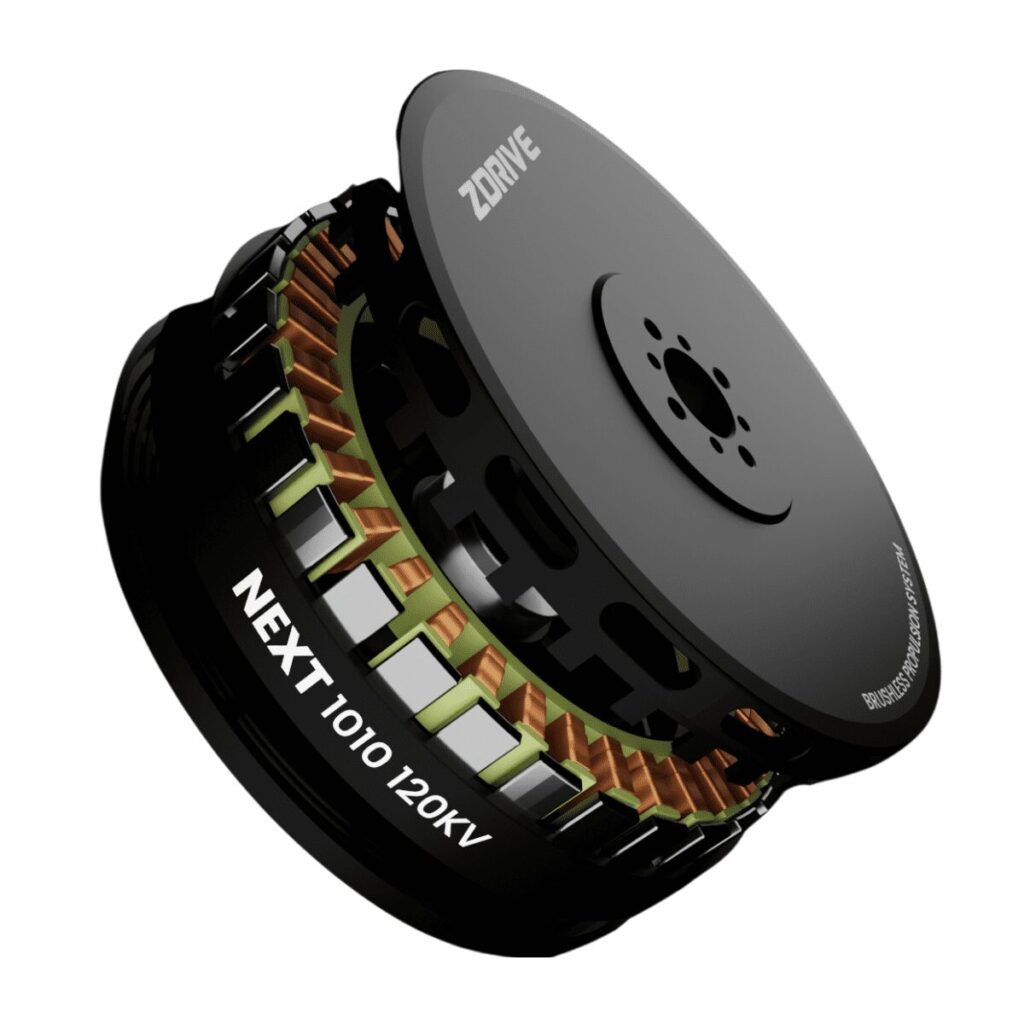

The ZDrive NEXT 1010 series features high-quality magnetic materials and precision stator geometry optimized for low-resistance, high-efficiency operation. With 220°C varnished windings, 180°C magnets, and reinforced 15 mm shaft, the motor maintains exceptional reliability during extended missions.

The large-diameter stator and enhanced cooling pathways enable consistent power output even under sustained high currents a critical requirement for payload-lift, mapping, and BVLOS drone missions. Each rotor is dynamically balanced to ≤10 mg, reducing vibration and improving flight controller stability, especially in UAVs carrying sensitive sensors or camera systems.

Key Features

High-torque heavy-lift motor for professional UAVs
Up to 20 kg-level thrust class depending on KV & propeller
100KV = maximum thrust & torque
120KV = better throttle response & RPM authority
Precision-balanced rotor (≤10 mg) for minimal vibration
220°C winding insulation for thermal durability
CNC-machined aluminum housing for cooling and strength
Compatible with 80A–120A high-frequency ESCs
Supports large props from 27–32 inches (depending on KV)

Ideal for cargo drones, mapping rigs, long-endurance systems

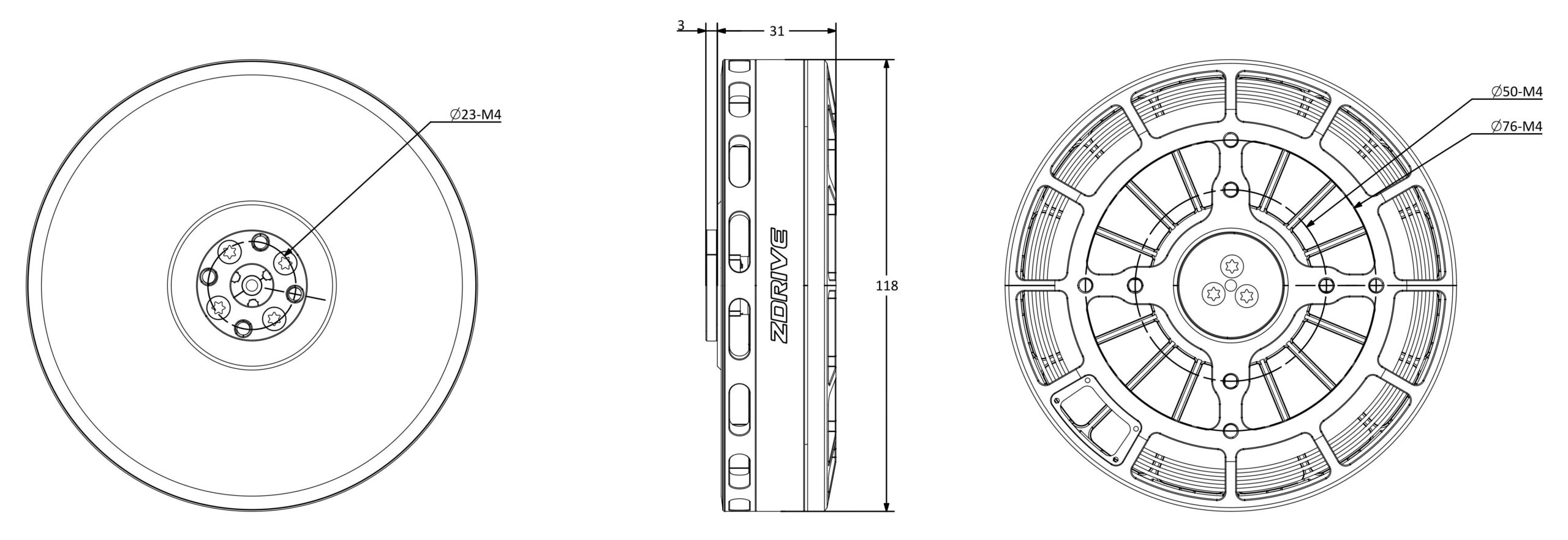

Motor Size	D:118x34.3 mm
Propeller Mounting Holes	D:20 M3x4
Shaft Diameter	IN: 15 mm
IP rating	35
Varnished wire Degree	220°C
Magnet Degree	180°C
Rotor Balance	≤10 mg
Motor Mounting Holes	D:30 M3x4, D:32 M4x4, D:50 M3x4

No Load Current	1.8A/30V
Motor Weight	610 g
Maximum Current	60.6 A
Maximum thrust	14.6 kg
Nominal Voltage	12S lipo battery
Internal Resistance	60 mΩ
Maximum Power	2069 W
Maximum Torque	5.7 Nm

No Load Current	2.1A/ 30V
Motor Weight	617 g
Maximum Current	85.7 A
Maximum thrust	17.2 kg
Nominal Voltage	12S lipo battery
Internal Resistance	47 mΩ
Maximum Power	2657 W
Maximum Torque	6.7 Nm

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 32x9.6	30	49.01	2.17	84.3	0.749	1314	1638	15.4	12S
	40	49.01	4.58	185.2	1.035	1709	2834	12.6
	50	48.94	8.49	346.9	1.579	2098	4356	10.5
	60	48.87	13.43	553.8	2.163	2445	6019	9.2
DRV 80A (5-14S)	70	48.75	20.76	834.7	2.849	2798	8017	7.9	101°C
	80	48.4	30.35	1180.1	3.605	3126	10046	6.8
	90	48.42	38.65	1543.3	4.327	3406	11928	6.4
	100	48.25	53.11	1940.6	5.09	3667	13917	5.4
POLY FOLD 32x10.5	30	48.97	2.85	101.9	0.752	1295	1963	14	12S
	40	48.96	5.83	222.9	1.288	1663	3368	11.7
	50	48.86	10.57	411.7	1.919	2064	4989	9.6
	60	48.81	16.38	642.4	2.589	2379	6656	8.3
DRV 80A (5-14S)	70	48.67	24.42	954.8	3.383	2705	8669	7.3	127°C
	80	48.54	35.64	1313.5	4.182	3010	10654	6.2
	90	48.27	46.16	1696.1	5.005	3243	12670	5.7
	100	48.01	60.57	2069.9	5.737	3452	14578	5

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 29x8.7	30	48.02	2.68	88.3	0.546	1545	1559	11.9	12S
	40	48.01	5.95	215.2	0.999	2067	2897	10.1
	50	48.01	10.25	390	1.498	2493	4389	8.9
	60	47.98	17.57	673.1	2.186	2958	6405	7.6
DRV 80A (5-14S)	70	47.96	27.03	1037.3	2.918	3408	8536	6.6	124°C
	80	47.87	36.58	1463.4	3.689	3809	10749	6.1
	90	47.86	51.35	1959.3	4.488	4186	13038	5.3
	100	47.79	69.71	2627.7	5.506	4566	15812	4.7
C FIX 32x9.6	30	44.05	3.67	119.6	0.819	1395	2094	12.9	12S
	40	44.02	7.89	276.4	1.438	1836	3705	10.6
	50	44.01	13.65	493.3	2.129	2213	5519	9.2
	60	43.94	22.38	802.6	2.956	2593	7645	7.8
DRV 120A (5-14S)	70	43.97	34.41	1203.4	3.885	2958	10163	6.7	133°C
	80	43.87	47.49	1664.4	4.863	3288	12594	6
	90	43.81	62.41	2107.8	5.669	3559	14766	5.4
	100	43.74	85.68	2657.5	6.662	3815	17169	4.6

General Description

The ZDrive NEXT 1010 series is engineered for UAV builders requiring high thrust, smooth torque output, and low noise operation. The 100KV variant excels in applications demanding maximum lift for large payloads, while the 120KV variant provides a balance of torque and agility, making it suitable for cinematography drones, inspection platforms, and heavy-lift mapping systems.

The NEXT 1010’s low-friction bearings, high-rigidity structure, and optimized magnetic circuit ensure stable performance during both hover-heavy missions and dynamic flight conditions.

Build & Materials

CNC-machined aviation-grade aluminum motor housing
220°C-grade high-purity copper windings
Stainless steel bearings for quiet, smooth rotation
Epoxy-coated stator core for corrosion protection
Reinforced shaft (Ø12 mm) for high torque handling
Rotor dynamically balanced ≤10 mg
IP-rated dust and moisture protection

Specifications Summary

Specification	N1010 – 100KV	N1010 – 120KV
Motor Weight	610 g	617 g
Max Current	60.6 A	85.7 A
Max Thrust	14.6 kg	17.2 kg
Max Torque	5.7 Nm	6.7 Nm
Internal Resistance	60 mΩ	47 mΩ
Peak Power	~2069 W	~2657 W
Best Voltage	12S LiPo	12S LiPo
Ideal Propellers	29–32 inches	27–30 inches

Technical Tips for Optimal Performance

Use high-quality carbon fiber propellers for maximum stability.
For long hover missions, ensure sufficient airflow around the motor.
Enable Active Braking (Damped Light) in ESC to improve descent control.
Use 10–12 AWG silicone wires for stable high-current flow.
For coaxial setups, maintain proper vertical spacing to reduce propwash.
Perform gradual throttle tests after installation to check thermal behavior.

Safety & Maintenance Tips

Balance propellers before every flight.
Periodically check and lubricate bearings.
Maintain motor temperature under 90°C during continuous use.
Do not exceed recommended currents or propeller sizes.
Store in a dry, dust-free environment.

FAQs

Heavy-lift UAVs, mapping drones, large cinematography rigs, cargo platforms, and long-distance BVLOS systems.

Up to 17–18 kg depending on propeller, ESC, and KV variant.

Both variants work best with 12S LiPo, with 100KV also performing well on 14S.

Yes, both KV versions perform efficiently in coaxial heavy-lift configurations.

Yes, the cooling design and high-temp windings allow safe continuous operation.
