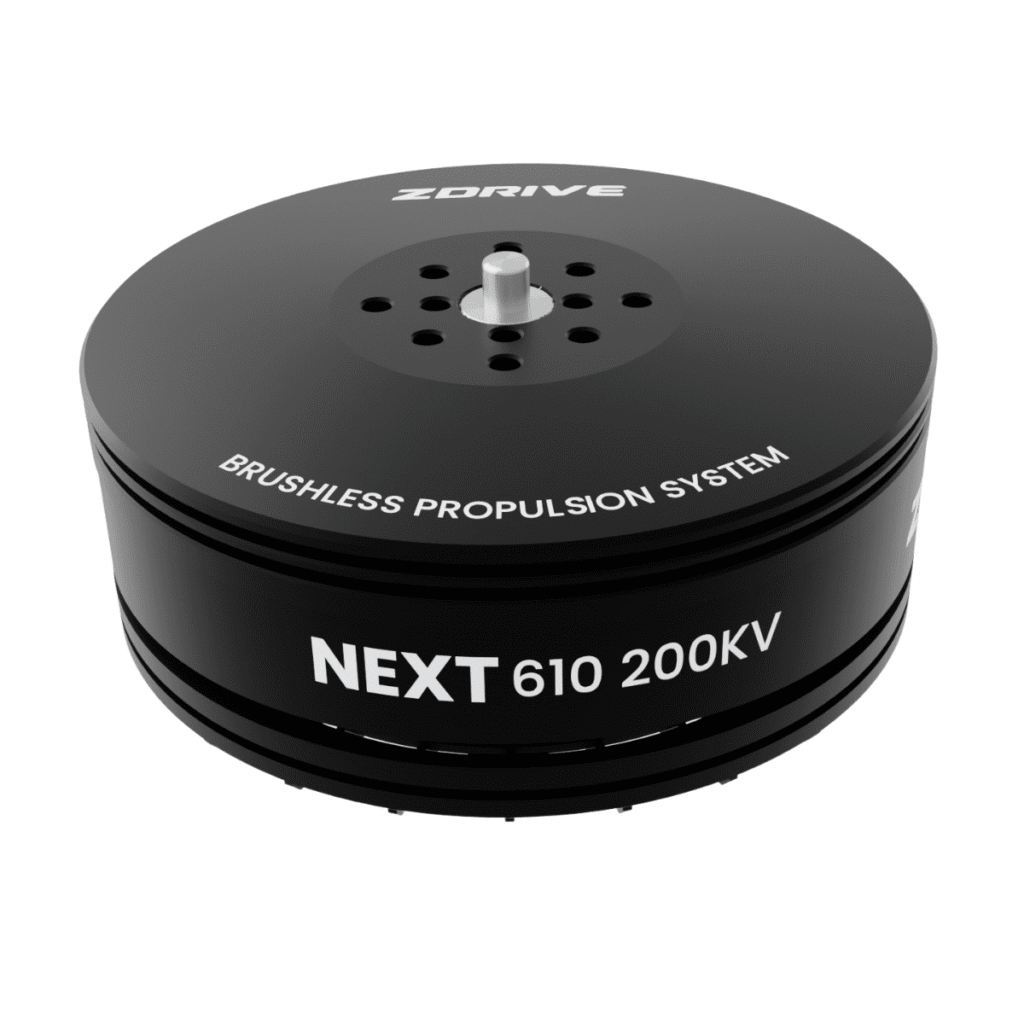

Next N610 (200KV) BLDC Motor

₹13,999.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

The ZDrive Next N610 (200KV) BLDC Motor is a high-torque, low-RPM motor built for professional heavy-lift UAVs and industrial aerial systems. With a strong 72 × 33.4 mm frame and weighing only 226 g, it offers exceptional thrust-to-weight efficiency and smooth, vibration-free propulsion. Optimized for 10S–12S (up to 14S) LiPo batteries, it delivers up to 9.70 kg of thrust, making it perfect for cargo drones, cinematography rigs, and long-endurance mapping platforms.

The ZDrive Next N610 (200KV) is designed to provide consistent torque, minimal vibration, and high reliability for large-scale UAVs. With a maximum power of 2,236.2 W and peak thrust of 9.70 kg, it offers exceptional stability even under high-load flight conditions.

Its 180°C-rated varnished copper windings, 150°C magnets, and low 64 mΩ internal resistance ensure smooth current flow and extended operational life. The precision-balanced rotor (≤5 mg) minimizes vibration, improving IMU accuracy and overall flight control.

Built for rugged outdoor use, the N610 includes IP-rated protection, CNC-machined aluminum housing, and high-tolerance bearings, ensuring long-term reliability in demanding aerial environments.

Key Features

High Thrust Capability: Delivers up to 9.70 kg thrust for heavy-lift UAVs.
Powerful Efficiency: 200KV rating ensures smooth, high-torque performance with large props.
Thermal Endurance: 150°C magnets and 180°C windings sustain long-duration flights.
Low Vibration Design: Rotor balanced to ≤5 mg for precise control.
Efficient Electrical System: Internal resistance of 64 mΩ ensures stable, low-heat operation.
Durable Construction: CNC-machined aerospace-grade aluminum body for strength and cooling.
ESC Compatibility: Optimized for 60A ESCs (5–14S) with high-frequency PWM support.

Flexible Prop Support: Suitable for 24–28″ carbon or composite propellers.

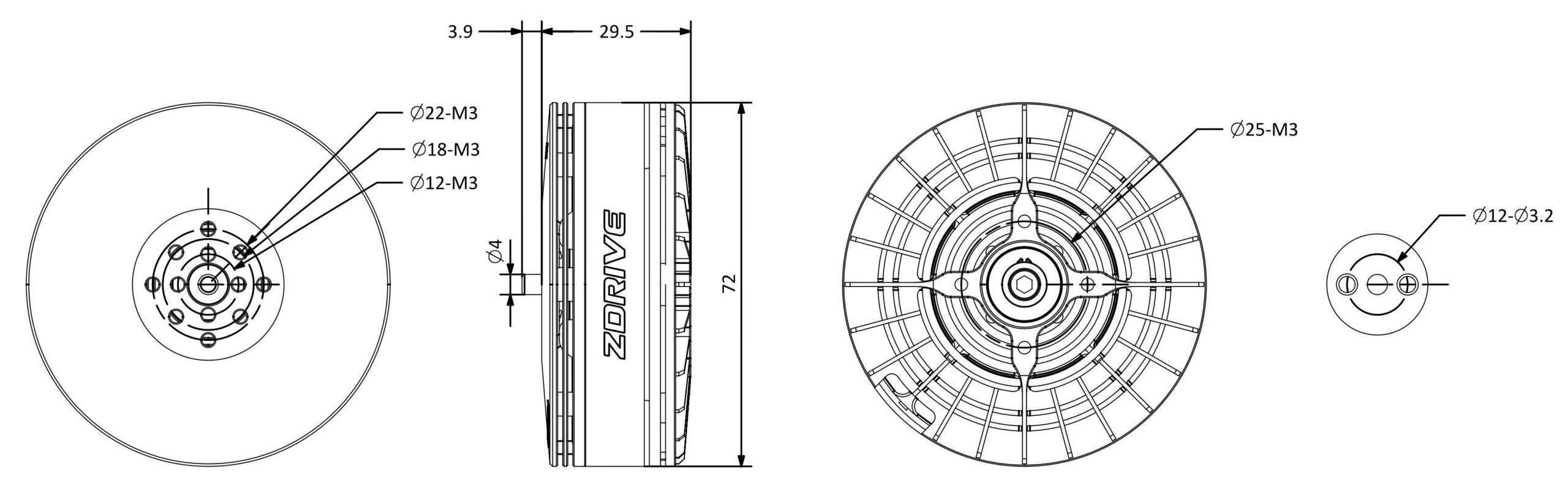

Motor Size	D:72 x 33.4 mm
Propeller Mounting Holes	D:12 M3×4, D:18 M3×4, D:22 M3×4
Shaft Diameter	IN: 6 mm
IP rating	45
Varnished wire Degree	180°C
Magnet Degree	150°C
Rotor Balance	≤5 mg
Motor Mounting Holes	D:25 M3×4

No Load Current	1.03A/ 20V
Motor Weight	226 g
Maximum Current	46.92 A
Maximum thrust	9.70 kg
Nominal Voltage	12S lipo battery)
Internal Resistance	64mΩ
Maximum Power	2236.2 W
Maximum Torque	2.34 Nm

General Description

The ZDrive Next N610 BLDC Motor represents the next generation of precision heavy-lift propulsion technology. Engineered for professional and industrial UAVs, it offers a perfect combination of torque density, structural integrity, and smooth control.

Its 200KV design ensures low-RPM efficiency, ideal for applications that require lift capacity and endurance over high-speed rotation. Built from aviation-grade materials, the motor maintains consistent power delivery, minimal vibration, and high mechanical stability under intense operating conditions.

Whether integrated into cargo drones, survey platforms, or cinematography UAVs, the N610 ensures silent, smooth, and dependable performance for every mission.

Build & Materials

Every ZDrive Next N610 motor is manufactured to aerospace and industrial standards for maximum performance and reliability:

CNC-machined aviation aluminum housing for excellent structural strength and heat dissipation.
180°C varnished copper windings for insulation and thermal endurance.
Precision stainless steel bearings ensure ultra-smooth rotation.
Epoxy-coated stator core protects against moisture and corrosion.
Rotor balanced to ≤5 mg for vibration-free operation.
IP35 protection against dust and light moisture exposure.

Technical Tips for Optimal Performance

Maximize performance and motor lifespan with these recommendations:

Use 60A ESCs rated for ≥32 kHz PWM frequency.
Pair with 24–28″ propellers for optimal thrust and torque balance.
Best results achieved on 10S–12S LiPo systems.
Enable Active Braking (Damped Light) for smoother descents.
Mount using vibration-damping standoffs to isolate IMU sensors.
Use 12–14 AWG silicone wires for efficient power transmission.
Gradually test throttle response and log thermal data during initial setup.

Safety & Maintenance Tips

Ensure safe, efficient, and reliable performance with proper maintenance:

Always balance propellers to avoid vibration and bearing wear.
Do not exceed rated current or thrust specifications.
Maintain adequate cooling airflow during operation.
Periodically inspect bearings and apply non-corrosive lubricants as needed.
Keep motor temperature below 85°C during prolonged flights.

Store in a dry, dust-free environment when not in use.

FAQs

It’s ideal for heavy-lift drones, cargo delivery UAVs, cinematography, and mapping platforms needing high torque and precision.

Delivers up to 9.70 kg thrust under optimal voltage and propeller configuration.

Supports 5S–14S LiPo batteries, with 10S–12S recommended for best efficiency.

Its high torque, low KV design provides superior lift capability and stable low-speed control.

Yes, it’s compatible with quadcopters, hexacopters, and octocopters built for heavy lift.

Built with IP-rated protection, heat-resistant components, and precision-balanced rotors, it’s engineered for professional-grade endurance and reliability.
