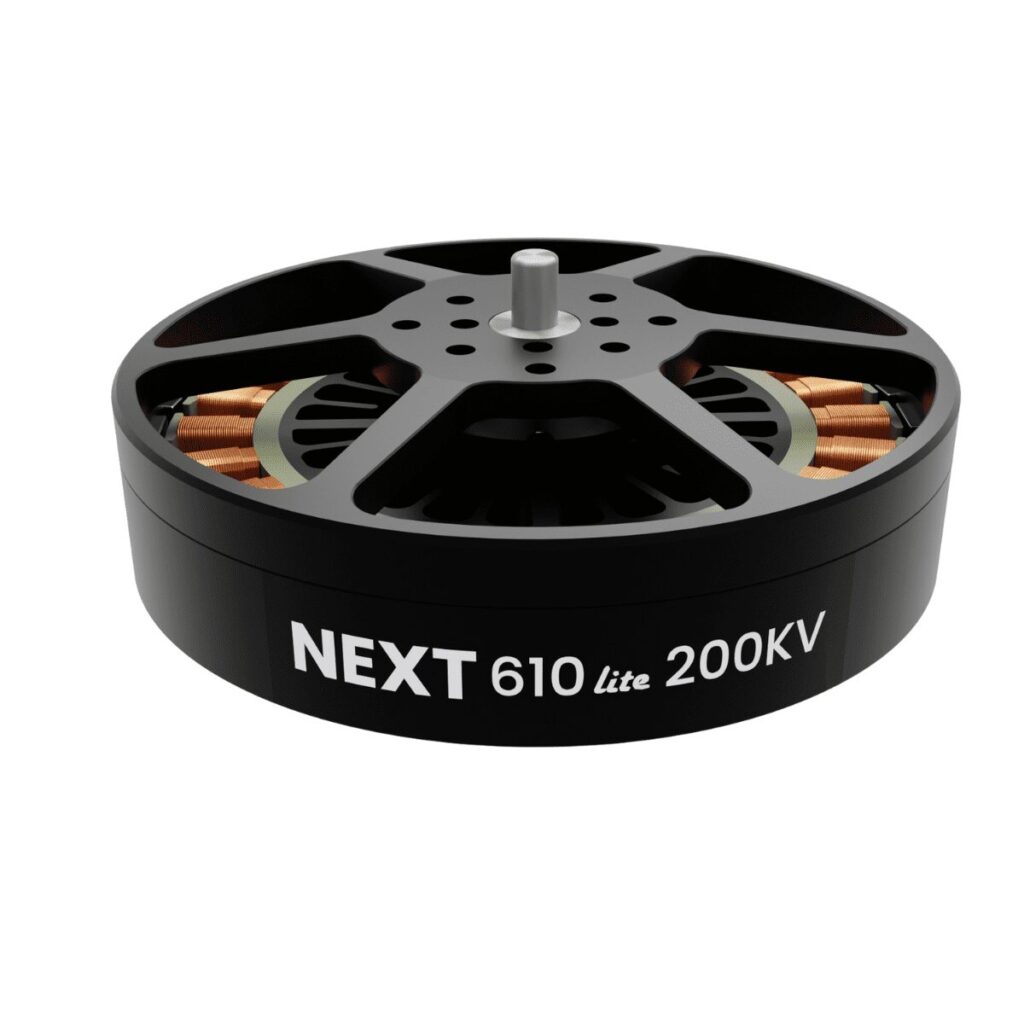

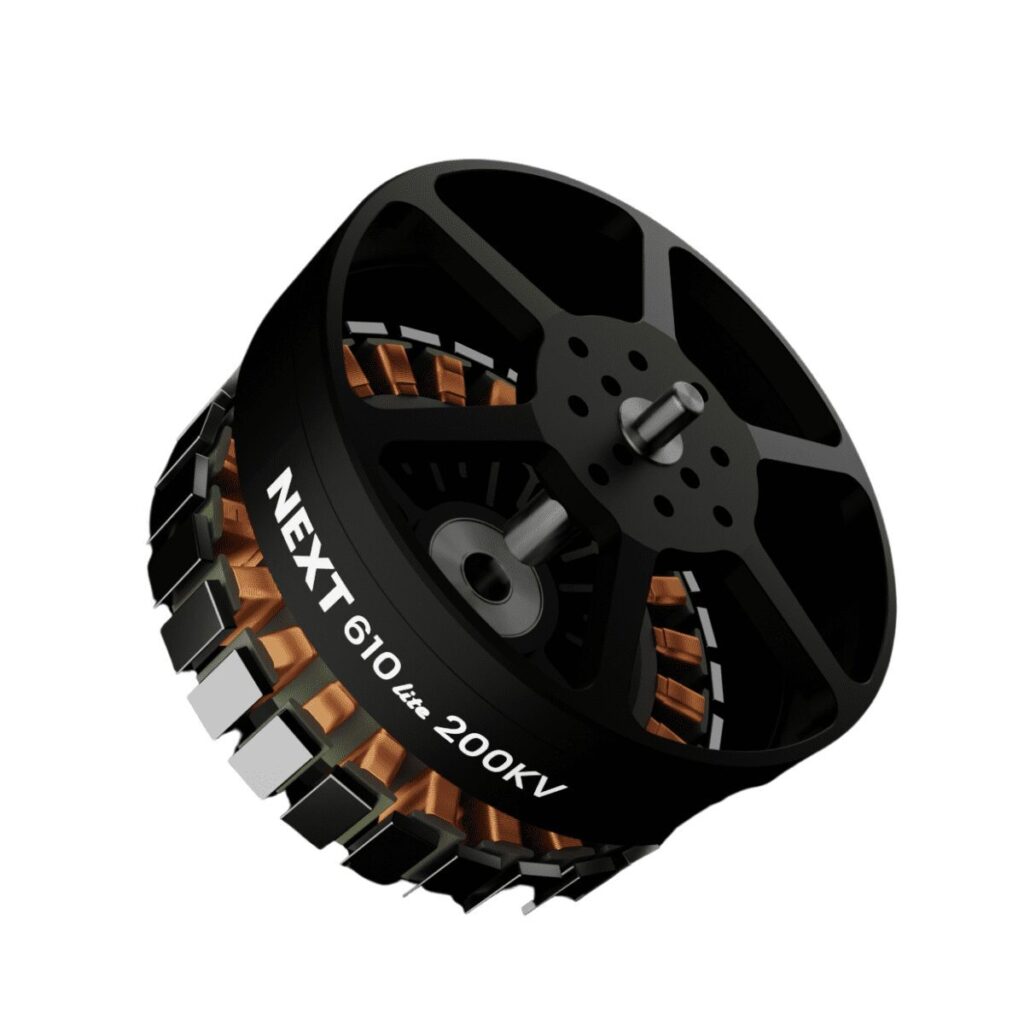

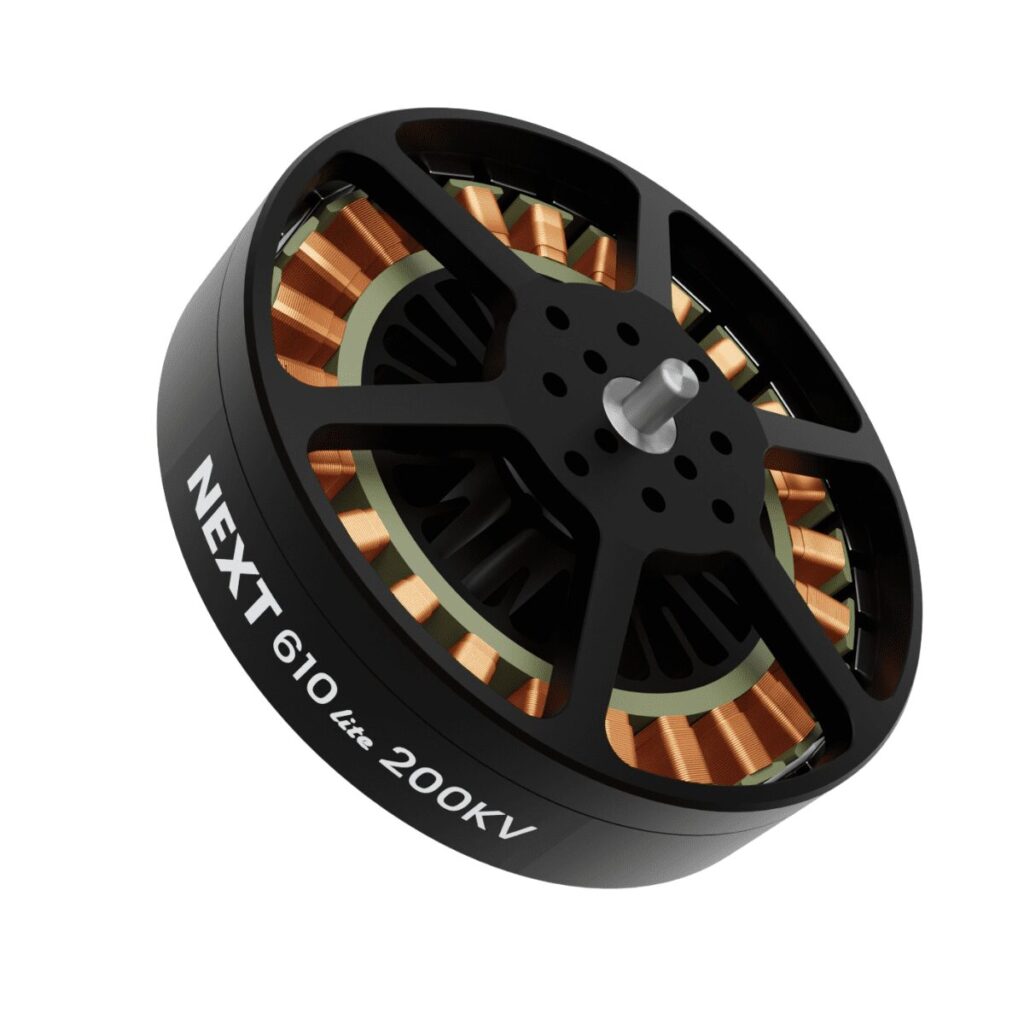

NEXT 610 Lite (200KV) BLDC Motor

₹12,999.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

The ZDrive NEXT 610 Lite 200KV is a precision-engineered, lightweight motor designed for heavy-lift multirotor UAVs. Constructed from aerospace-grade materials, it combines high torque output with remarkable power efficiency. Weighing just 201 grams, the NEXT 610 Lite achieves up to 9.6 kg thrust, optimized for 10S–12S (up to 14S) LiPo setups. This makes it an excellent fit for delivery drones, surveying systems, and aerial photography platforms that prioritize both lift and endurance.

The ZDrive NEXT 610 Lite delivers the same dependable power characteristics as the standard NEXT 610 Lite but in a lighter, more efficient package. With a peak power output of 1685.4 W and maximum thrust of 9.6 kg, it provides consistent propulsion across a range of high-demand missions.

A low internal resistance (64 mΩ) minimizes energy loss and heat, while 180°C copper windings and 150°C-rated Neodymium magnets maintain steady performance under sustained loads. The precision-balanced rotor (≤5 mg) significantly reduces vibration, improving IMU readings and flight smoothness.

Engineered for endurance and payload performance, this motor combines robust mechanical construction with optimized energy efficiency, ideal for professional aerial operations.

Key Features

Strong Thrust Output: Provides up to 9.6 kg for high-lift platforms.
Reduced Weight: Only 201 g, improving efficiency and flight duration.
Reliable Torque: 200KV design ensures stable thrust with large propellers.
Thermal Resilience: 150°C magnets and 180°C windings maintain long-term performance.
Precision Rotor Balance: ≤5 mg tolerance minimizes vibration and noise.
Efficient Electrical Design: 64 mΩ internal resistance reduces heat buildup.
Aviation-Grade Durability: CNC-machined aluminum housing ensures structural integrity and cooling.

ESC Compatibility: Fully compatible with 60A ESCs (5–14S) supporting high-frequency PWM control.

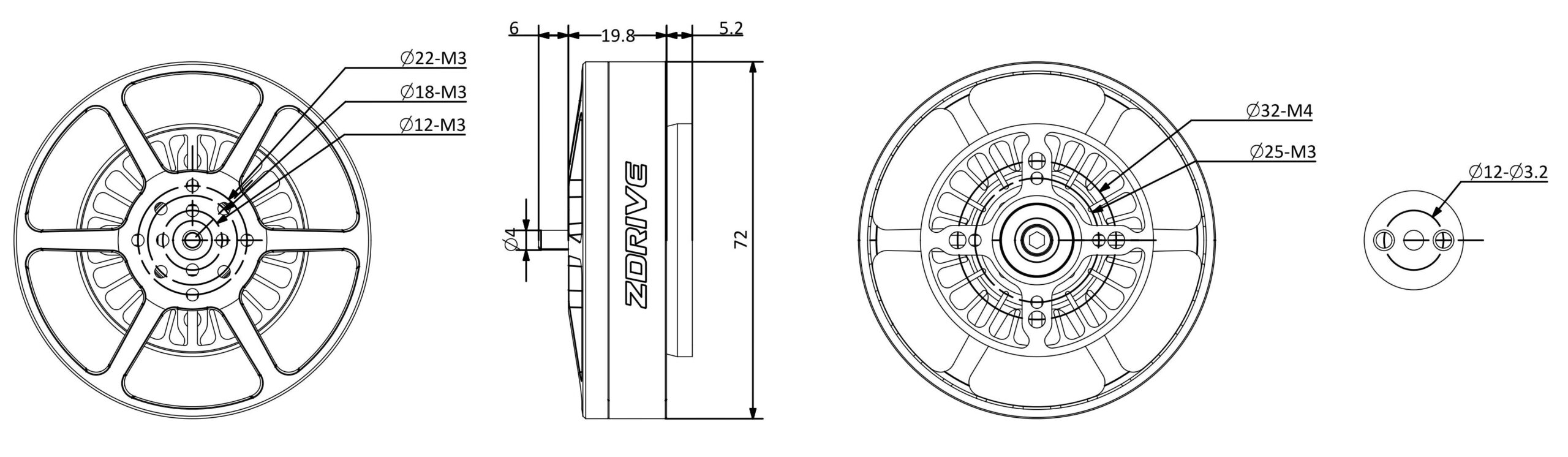

Motor Size	D:72 x 31.4 mm
Propeller Mounting Holes	D:12 M3×4, D:18 M3×4, D:22 M3×4
Shaft Diameter	IN: 6 mm
Varnished wire Degree	180°C
Magnet Degree	150°C
Rotor Balance	≤5 mg
Motor Mounting Holes	D:25 M3×4, D:32 M4x4

No Load Current	1.03A/ 20V
Motor Weight	201 g
Maximum Current	47 A
Maximum thrust	9.6 kg
Nominal Voltage	12S lipo battery
Internal Resistance	64 mΩ
Maximum Power	1685.4 W
Maximum Torque	2.3 Nm

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 19x5.7	30	48.26	1.73	54.5	0.193	2731	826	9.9	12S
	40	48.24	3.34	116.6	0.316	3542	1408	8.8
	50	48.23	5.98	225.1	0.488	4427	2264	7.9
	60	48.16	9.14	356.2	0.664	5139	3097	7
DRV 60A (5-14S)	70	48.17	13.26	506.7	0.836	5791	3957	6.2	64°C
	80	48.09	18.63	720.2	1.065	6484	5075	5.7
	90	48.1	25.77	980.3	1.315	7119	6272	5.1
	100	47.96	32.93	1297.8	1.589	7827	7561	4.8
C FIX 20x6.0	30	48.22	2.03	65.9	0.242	2685	1104	11.3	12S
	40	48.13	3.87	137.6	0.391	3429	1769	9.5
	50	48.15	7.19	275.3	0.618	4294	2774	8
	60	48.14	11.21	438.1	0.847	4993	3812	7.1
DRV 60A (5-14S)	70	48.11	16.61	614.5	1.041	5616	4764	6	79°C
	80	48.01	21.16	848.3	1.306	6249	5876	5.8
	90	47.95	29.74	1150.9	1.612	6828	7184	5
	100	47.9	39.81	1503.5	1.929	7478	8891	4.5
C FIX 21x6.3	30	48.11	2.34	82.2	0.296	2610	1291	11.5	12S
	40	48.08	4.55	166.1	0.486	3309	2058	9.4
	50	48.01	8.57	330.3	0.763	4128	3298	8
	60	48.01	13.45	515.9	1.035	4795	4439	6.9
DRV 60A (5-14S)	70	47.86	18.96	732.3	1.308	5373	5546	6.1	92°C
	80	47.81	25.81	987.3	1.594	5937	6732	5.5
	90	47.73	35.55	1317.5	1.947	6469	8176	4.8
	100	47.65	46.99	1685.4	2.309	6995	9623	4.3

General Description

The ZDrive NEXT 610 Lite 200KV is crafted for UAV operators who need dependable lift with improved energy efficiency. Its refined stator and magnetic circuit ensure consistent torque output while minimizing power losses. The lightweight housing and smooth dynamic response enhance both endurance and handling.

Ideal for delivery drones, cinematography UAVs, and survey applications, this motor offers precision flight control, excellent cooling performance, and superior mechanical stability, making it a trusted choice for professional multirotor builds.

Build & Materials

Every ZDrive NEXT 610 Lite is manufactured using aerospace-grade processes for accuracy and reliability:

CNC-machined aluminum alloy housing provides durability and effective heat dissipation.
180°C-rated copper windings ensure insulation strength and efficiency.
Stainless steel bearings deliver smooth rotation and long service life.
Epoxy-coated stator core protects against corrosion and humidity.
Rotor balanced within ≤5 mg for low vibration and enhanced stability.

Technical Tips for Optimal Performance

Follow these setup recommendations for the best operation and durability:

Use 60A ESCs with ≥32 kHz PWM for smooth throttle response.
Pair with 24–28″ propellers on 10–12S LiPo systems for optimal results.
Mount the motor using vibration-damping standoffs for sensor protection.
Use 14–16 AWG silicone wires for minimal electrical loss.
Run gradual throttle calibration tests and monitor heat behavior before full flight.

Safety & Maintenance Tips

Ensure longevity and safety with routine care:

Always balance propellers before takeoff to prevent excess vibration.
Stay within rated current and thrust specifications to avoid damage.
Maintain consistent airflow and cooling around the motor.
Periodically inspect bearings and apply non-corrosive lubricants.
Keep the temperature below 85°C during prolonged operation.

Store in a dry, dust-free location after each mission.

FAQs

Ideal for heavy-lift, industrial, and long-endurance drones, including delivery and survey UAVs.

Up to 9.68 kg, depending on voltage and propeller configuration.

Best operated on 10S–12S LiPo, compatible up to 14S.

It’s approximately 11% lighter, offering the same torque and thrust with higher efficiency.

Yes, works seamlessly with quadcopters, hexacopters, and octocopters.

With heat-resistant components, balanced rotors, and IP-rated sealing, it’s built for industrial-grade reliability.
