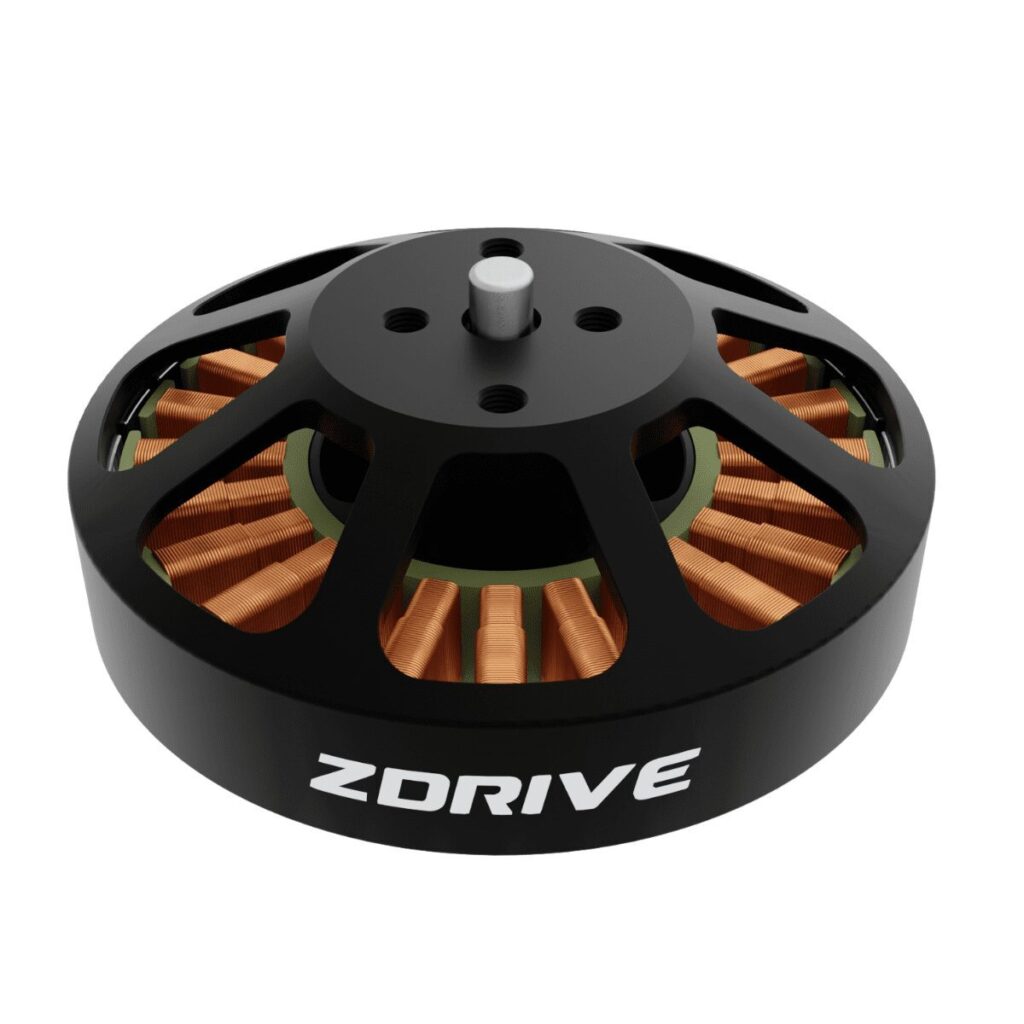

ZDrive 4006 KV380 BLDC Motor

₹7,499.00

Indian rupee (₹) - INR

Indian rupee (₹) - INR
United States dollar ($) - USD
Canadian dollar ($) - CAD

The ZDrive 4006 KV380 BLDC Motor delivers exceptional power, precision, and reliability for medium-lift UAVs and professional aerial platforms. Engineered with a 44.5 × 24.5 mm compact form factor and weighing just 78 g, it ensures superior power-to-weight efficiency without compromising on stability or performance.

The ZDrive 4006 KV380 BLDC Motor delivers a maximum thrust of 2.22 kg and a maximum power output of 420.8 W, offering strong lift and torque for drones used in delivery operations, mapping missions, and aerial photography. With 6S LiPo battery compatibility and a low internal resistance of 170 mΩ, it ensures smooth current flow, efficient power conversion, and a longer operational lifespan.

Engineered for endurance, the motor features IP35 protection, 150°C varnished wire, and high-temperature-rated magnets to enhance durability under demanding flight conditions. Precision-balanced with ≤5 mg rotor tolerance, it minimizes vibration and ensures responsive flight control for superior UAV handling and stability.

Key Features

High Thrust Output: Delivers up to 2.22 kg thrust with 420.8 W maximum power.
Efficient Design: Low 0.45 A no-load current at 20V ensures optimized energy consumption.
Thermal & Magnetic Stability: 150°C-rated varnished wires and magnets ensure consistent performance under high loads.
Precision Rotor Balance: ≤5 mg balance tolerance minimizes vibration and improves control response.
Durable Build: IP35 rating protects against dust and light moisture for reliable outdoor operation.
Seamless Integration: D:25 M3×4 motor mount and D:12 M3×4 propeller mount allow easy installation across various UAV frames.
Smooth Power Delivery: Supports 6S LiPo batteries, providing stable current draw up to 17.84 A with 0.46 Nm torque for superior propulsion efficiency.

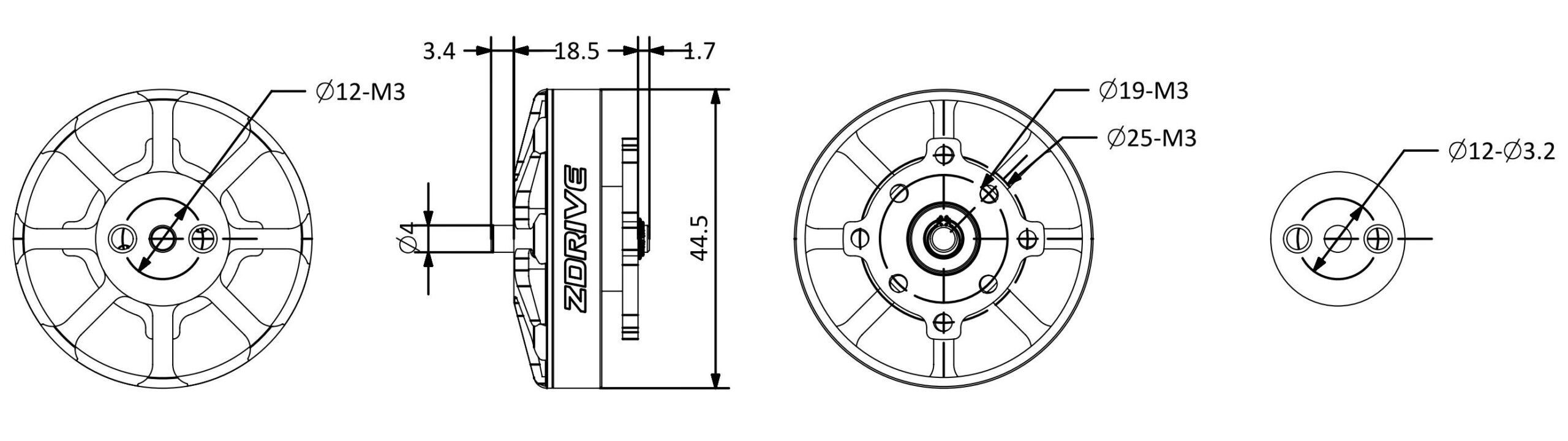

Motor Size	D:44.5 x 24.1 mm
Propeller Mounting Holes	D:12 M3x4
Shaft Diameter	IN: 4 mm
IP rating	45
Varnished wire Degree	150°C
Magnet Degree	150°C
Rotor Balance	≤5 mg
Motor Mounting Holes	D:19 M3x4 D:25 M3x4V

No Load Current	0.45 / 20V
Motor Weight	70.5 g
Maximum Current	17.89 A
Maximum thrust	2.25kg
Nominal Voltage	6S lipo battery
Internal Resistance	170mΩ
Maximum Power	417.9W
Maximum Torque	0.46 Nm

Propeller & ESC	Throttle [%]	Voltage [V]	Current [A]	Output Power [W]	Torque [Nm]	RPM	Thrust [gf]	Efficiency [g/W]	Operating Temp.
C FIX 13X4.4	30	23.88	0.46	9.2	0.034	2575	161	14.7	6S 35°C
	40	23.87	0.99	19.8	0.057	3385	302	12.8
	50	23.85	1.77	36.1	0.084	4155	485	11.5
	60	23.83	2.73	55.3	0.113	4845	662	10.2
DRV 40A (2-6S)	70	23.79	3.91	78.5	0.139	5460	859	9.3
	80	23.76	5.31	107.1	0.171	6035	1059	8.5
	90	23.75	6.94	138.2	0.206	6567	1278	7.8
	100	23.69	9.35	184.9	0.249	7223	1529	6.9
C FIX 14x4.8	30	23.81	0.58	11.5	0.044	2485	209	15.1	6S 37°C
	40	23.81	1.23	24.6	0.074	3175	374	12.8
	50	23.76	2.31	46.3	0.112	3950	590	10.8
	60	23.75	3.55	71.9	0.151	4575	815	9.7
DRV 40A (2-6S)	70	23.72	5.03	97.6	0.191	5155	1034	8.7
	80	23.67	6.81	137.5	0.228	5610	1282	8
	90	23.67	8.88	169.2	0.264	6165	1523	7.2
	100	23.58	11.76	218.6	0.335	6715	1783	6.5
C FIX 15x5.0	30	23.89	0.71	13.6	0.054	2401	279	16.9	6S 43°C
	40	23.77	1.41	27.1	0.087	2962	455	13.5
	50	23.58	2.79	53.8	0.137	3763	748	11.4
	60	23.83	4.15	80.5	0.177	4344	979	9.9
DRV 40A (2-6S)	70	23.69	5.92	111.9	0.215	4859	1233	8.9
	80	23.65	8.18	146.3	0.272	5378	1525	7.9
	90	23.61	10.69	184.7	0.316	5885	1799	7.1
	100	23.57	14.08	233.2	0.359	6346	2068	6.3
C FIX 16x5.4	30	23.85	0.91	17.8	0.074	2278	333	15.3	6S HIGH TEMP
	40	23.83	1.79	33.1	0.111	2824	529	12.4
	50	23.79	3.39	64.6	0.172	3551	848	10.5
	60	23.76	5.23	95.3	0.229	4104	1129	9.2
DRV 40A (2-6S)	70	23.71	7.49	135.8	0.293	4569	1419	8
	80	23.69	10.18	179.2	0.351	4987	1689	7.1
	90	23.62	13.61	214.4	0.387	5376	1939	6.1
	100	23.51	17.79	263.3	0.437	5746	2239	5.4

General Information:

The ZDrive 4006 KV380 BLDC Motor is engineered for demanding UAV applications that require high thrust, efficiency, and precision control. With its robust design and optimized magnetic circuit, it ensures consistent power output for medium-lift drones operating in professional, industrial, or research environments.

Built from aerospace-grade materials, the motor maintains performance under sustained workloads, offering superior cooling and minimal vibration. Compatible with a wide range of propellers and ESCs, it integrates easily into multirotor configurations such as quadcopters, hexacopters, and octocopters.

This motor is the perfect balance between efficiency, torque, and reliability, delivering dependable performance for UAV designers and professional pilots alike.

Build & Materials

Every ZDrive motor is manufactured to meet strict aerospace and industrial standards:

CNC-machined aluminium housing for rigidity and improved heat dissipation.
150°C-Rated Copper Windings coated with heat-resistant varnish.
Stainless Steel Bearings for smooth, vibration-free rotation.
Epoxy-Coated Stator Core to resist corrosion and moisture damage.
Dynamically Balanced Rotor with ≤5 mg precision for minimal vibration and high stability.

Technical Tips for Optimal Performance

Enhance your drone’s efficiency and lifespan with these setup insights:

Use a 30–40 A ESC supporting high-frequency PWM (≥32 kHz) for smoother throttle control.
Best paired with 13–15 inch carbon or composite propellers on 6S LiPo systems.
Enable active braking (Damped Light) in your ESC firmware for improved descent control.
Mount motors using vibration-damping standoffs to protect IMU sensors.
Use 14–16 AWG silicone wires for efficient current flow and low resistance.
Perform gradual throttle tests to monitor thermal behavior and log flight data for tuning.

Safety & Maintenance Tips

Ensure consistent and safe operation with regular care:

Always balance propellers before flight to prevent vibration and bearing wear.
Avoid exceeding current and thrust ratings to prevent thermal overload.
Maintain airflow around the motor for adequate cooling during operation.
Inspect and clean bearings periodically; use non-corrosive lubricant if needed.
Keep motor casing temperature below 80°C during continuous use.
Store motors in a dry, dust-free environment when not in use.

FAQs

This motor delivers a maximum thrust of 2.22 kg, making it suitable for drones that need reliable lift and payload handling.

The motor is optimized for 6S LiPo batteries, ensuring smooth current flow and stable power delivery for longer, more efficient flights.

It has a KV rating of 380 KV, meaning the motor spins at 380 RPM per volt applied (without load). This provides the ideal balance between torque and speed for medium-lift drones.

Built with IP35 protection, 150°C varnished wire, and high-temperature magnets, it performs reliably even in demanding outdoor or extended flight conditions.

Yes, the ZDrive 4006 is compatible with various multi-rotor configurations, including quadcopters, hexacopters, and octocopters, depending on your UAV’s power setup.
